Description

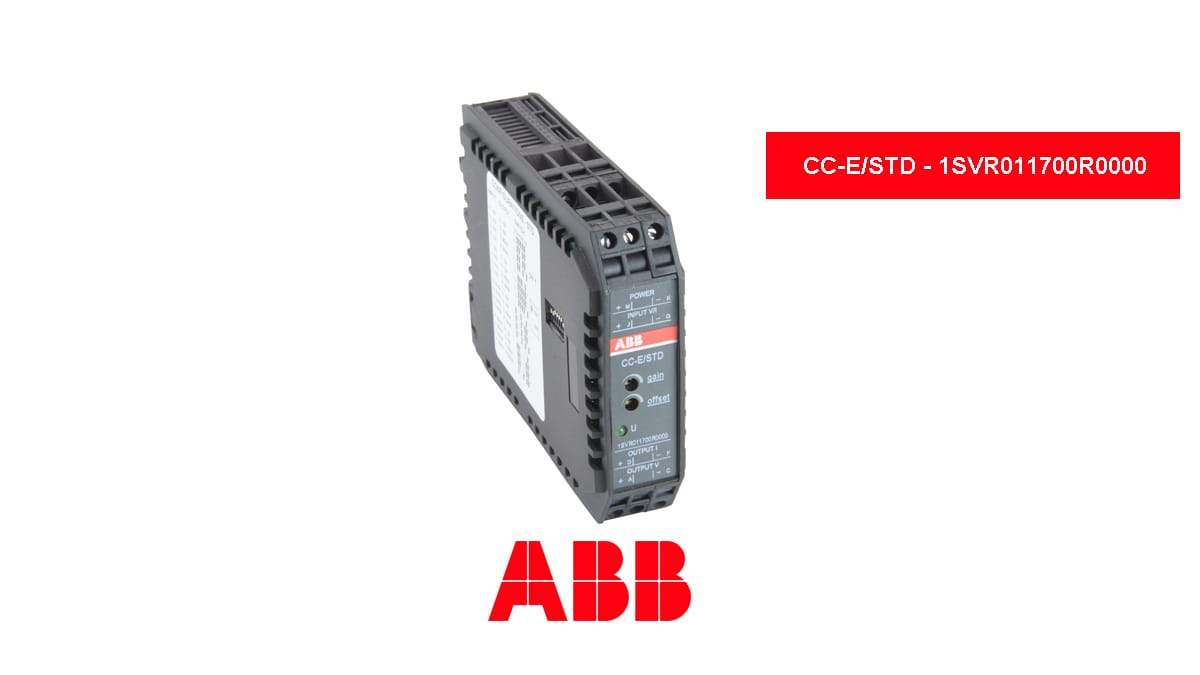

Universal CC-E/STD Signal Converter
The CC-E/STD is an universal standard analog signal converter from the CC-E range. This converter, with 3-way electrical isolation, operates with a rated control supply voltage of 24 V DC. The 4 input signal ranges (0-5 V, 0-10 V, 0-20 mA, 4-0 mA) and the 4 output signal ranges (0-5 V, 0-0 V, 0-20 mA, 4-20 mA) can be configured by means of directly accessible lateral DIP switches. The adjustment of the gain and the offset is made via potentiometers on the front of the unit. Applied supply voltage is displayed by a green LED.
