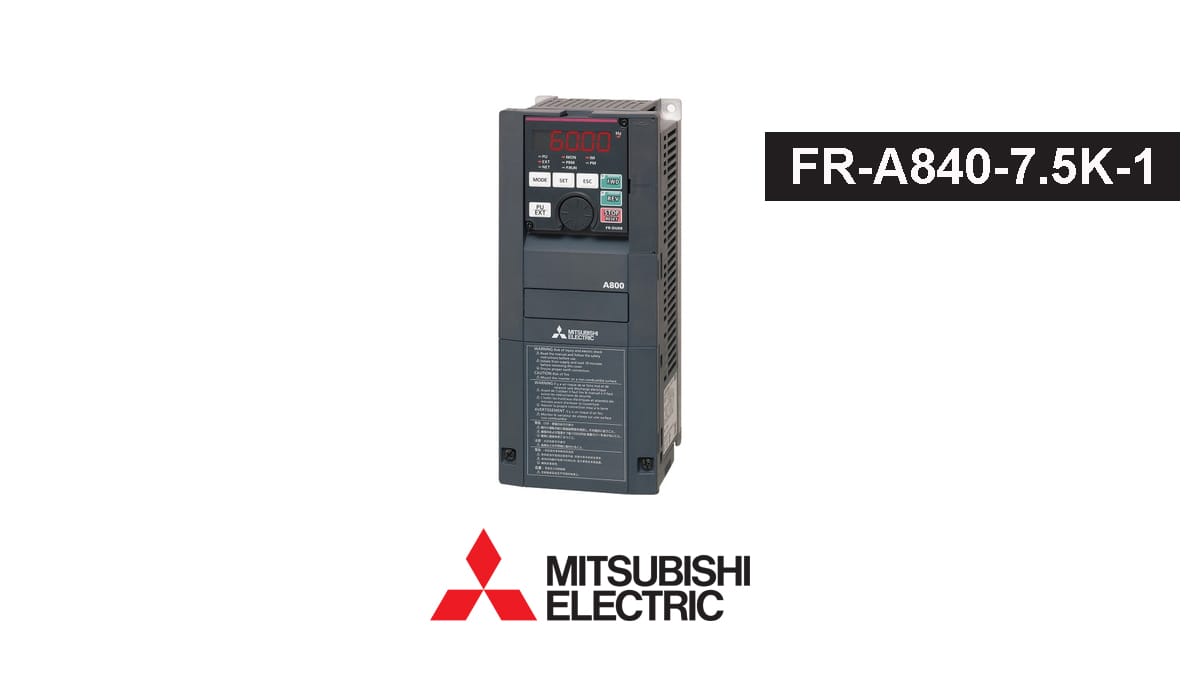

Mitsubishi FR-A840-7.5K-1

Sold by: admin

Brand: Mitsubishi Electric

Rp15.000.000,00

Cek Price Range dibawah atau hubungi Customer Service kami. Terimakasih

Mitsubishi FR-A840-7.5K-1 is a high-performance FREQROL FR-A800 Series AC variable frequency drive (VFD) with a 7.5 kW (10 HP) rating for three-phase motors, offering wide output frequency range (up to 590 Hz), advanced sensorless vector control and RS-232/422/485 communication support — ideal for motor speed and torque control in industrial automation systems

Add to cart

Buy Now

Brand: Mitsubishi Electric

Mitsubishi FR-A840-7.5K-1 FREQROL A800 Series Variable Frequency Drive

Name: CV. Armada Perkasa Nusantara
Address: ID

Mitsubishi FR-A840-7.5K-1 adalah variable frequency drive (VFD) / inverter AC dari seri FREQROL FR-A800 Mitsubishi Electric yang dirancang untuk mengatur kecepatan dan torsi motor listrik tiga fase dengan daya nominal 7.5 kW (10 HP) untuk aplikasi industri menengah. Drive ini menawarkan performa kontrol motor halus dengan rentang frekuensi output hingga 590 Hz, komunikasi standar, dan proteksi lengkap untuk operasi andal dalam berbagai jenis mesin dan sistem otomatisasi.

Dilengkapi fitur kontrol mulai dari V/F control, hingga advanced sensorless vector control dan PM sensorless vector control, FR-A840-7.5K-1 kompatibel dengan jaringan motor tiga fase 380 – 500 VAC serta komunikasi serial seperti RS-232/422/485 untuk integrasi sistem kontrol otomatisasi. Desain kompak dengan perlindungan IP20 cocok untuk pemasangan panel kontrol industri.

Variable frequency drive / inverter AC untuk motor tiga fase
Rated power 7.5 kW (10 HP) pada tegangan input 380-500 V AC
Output frequency 0.2 – 590 Hz
Metode kontrol: V/F, advanced sensorless vector, PM sensorless vector
Proteksi lengkap: overload, overcurrent, overvoltage, short-circuit
Komunikasi RS-232/422/485 (Modbus RTU)
Built-in keypad LCD untuk setup & monitoring
Enclosure IP20 dengan forced air cooling

Reviews

There are no reviews yet.

Be the first to review “Mitsubishi FR-A840-7.5K-1”

Specification

Mitsubishi FR-A840-7.5K-1 – Technical Specifications
Product	Variable Frequency Drive (VFD) / Inverter
Brand	Mitsubishi Electric
Model / Part Number	FR-A840-7.5K-1
Series	FREQROL FR-A800
Rated Output Power	7.5 kW (10 HP) :contentReference[oaicite:3]{index=3}
Input Voltage	Three-phase 380…500 V AC :contentReference[oaicite:4]{index=4}
Output Voltage	Three-phase 380…500 V AC
Output Frequency	0.2 – 590 Hz
Control Methods	V/F, Soft-PWM, Vector control (sensorless & PM)
Rated Current (Normal Duty)	17 A approx.
Communication	RS-232/422/485 (Modbus RTU)
Protections	Overload, overcurrent, overvoltage, short-circuit
User Interface	Built-in keypad & LCD display
Cooling	Forced air cooling
Protection Class	IP20
Dimensions (Approx.)	260 × 220 × 170 mm
Weight	~7.7 kg
Applications	Conveyor, pump, fan, printing, packaging, metal & paper machinery
