Description

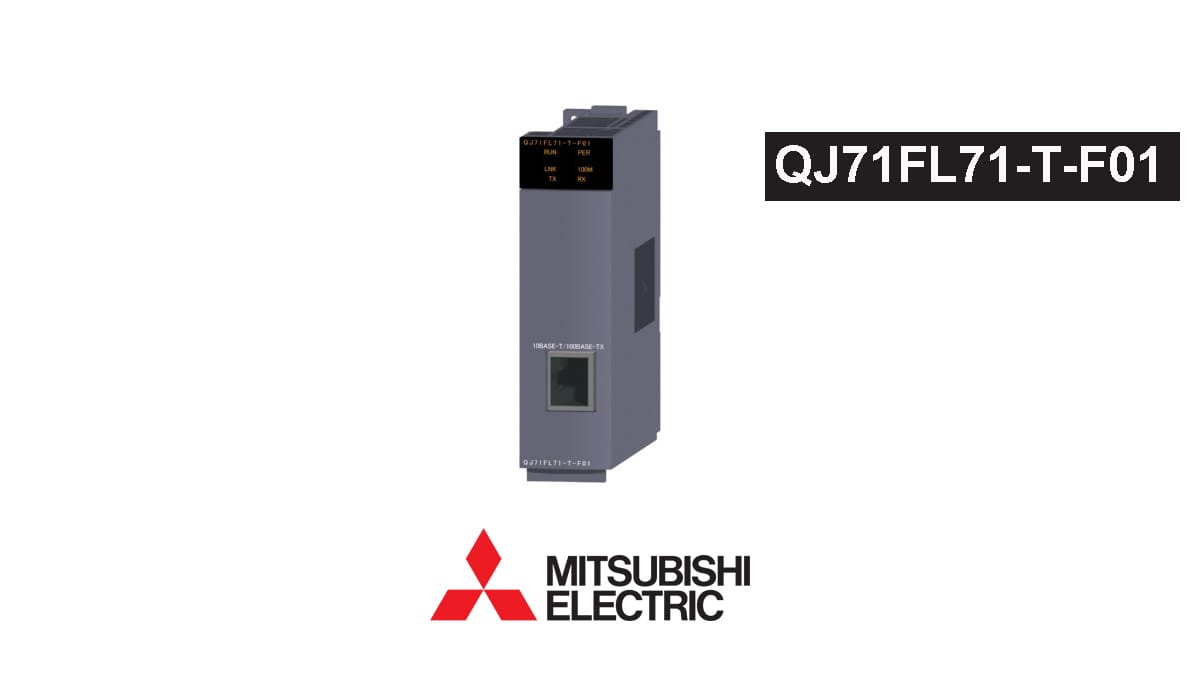

The QJ71FL71-T-F01 interface module from Mitsubishi originated plays a vital role in facilitating the exchange of data between diverse control modules used in manufacturing systems, such as programmable controllers, robot controllers (RC), numerical control modules (NC), and personal computers involved in control processes. This module utilizes the FA link protocol to ensure effective system integration and communication. The QJ71FL71-T-F01 complaints with Ethernet including 10BASE-T and 100BASE-TX; this interface unit supports data transmission rates of 10Mbps (half duplex) and 100Mbps (full duplex/half duplex), ensuring stable communication via a baseband transmission mechanism and adherence to the IEEE 802.3 standard (CSMA/CD standard). Its maximal segment length of 100 meters enables connection to as many as 254 nodes, providing extensive coverage. With a maximum cyclic data volume of 8k bits and 8k words per system and per node, as well as a maximum message data volume of 1024 bytes, the module has an impressive capacity for managing large volumes of data, allowing for the exchange of significant amounts of information. The shared memory space with an 8 kilobyte bit area and an 8 kilobyte word area makes data storage and retrieval efficient. In addition, the Mitsubishi QJ71FL71-T-F01 provides 32 intelligent I/O assignment points, allowing for flexible integration of control modules into industrial systems. It is an energy-efficient option due to its minimal internal current consumption of 0.5 amps at 5 volts of direct current (DC). This interface module’s support for multiple functions assures dependable data exchange and system control, making it a valuable asset for industrial applications.
