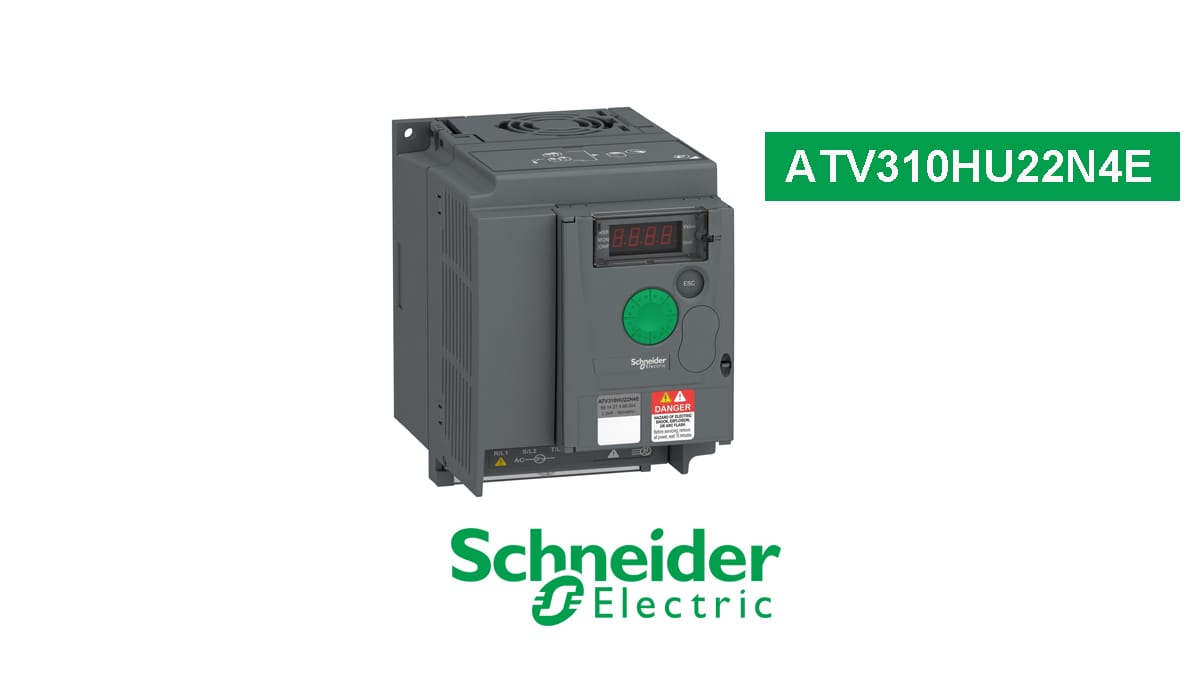

Schneider Electric ATV310HU22N4E Easy Altivar 310 adalah variable speed drive (VSD) 3-phase dengan rating motor 2.2 kW atau 3 HP, dirancang untuk mengendalikan motor asynchronous pada sistem otomasi industri. Drive ini menerima suplai 380–460 VAC tiga fase dengan toleransi -15% hingga +10% dan frekuensi 50/60 Hz ±5%. ATV310HU22N4E merupakan solusi compact untuk pengaturan kecepatan motor pada berbagai aplikasi mesin sederhana.

ATV310HU22N4E memiliki continuous output current sebesar 5.5 A untuk heavy-duty dan maximum transient current 8.3 A selama 60 detik. Drive ini mendukung beberapa metode kontrol motor, termasuk V/F, quadratic V/F energy-saving, dan sensorless flux vector control. Frekuensi output dapat diatur dari 0.5 hingga 400 Hz, dengan switching frequency nominal 4 kHz dan pilihan switching frequency 2–12 kHz. ATV310 juga menyediakan fungsi perlindungan terhadap overvoltage, undervoltage, overcurrent, overheating, short circuit motor, input phase loss, dan thermal motor overload.

Untuk komunikasi dan integrasi sistem, Schneider Electric ATV310HU22N4E dilengkapi Modbus RTU melalui RS-485 2-wire dengan konektor RJ45 di bagian depan. Drive menyediakan 4 programmable digital inputs, 1 configurable analog input, 1 configurable analog output, serta output logic dan relay. Dengan desain heatsink dan integrated fan, enclosure IP20, dimensi sekitar 105 × 143 × 151 mm, serta berat sekitar 1.1 kg, ATV310HU22N4E sesuai untuk aplikasi textile machine, machine tools, material handling, packaging, printing, woodworking, ceramic machinery, dan berbagai mesin industri lainnya.

Reviews

There are no reviews yet.

Be the first to review “Schneider ATV310 2.2 kW 3 hp 380-460VAC 3PH – ATV310HU22N4E”

Specification

Specification	Details
Brand	Schneider Electric
Product Range	Easy Altivar 310
Device Short Name	ATV310
Catalog Number	ATV310HU22N4E
Product Type	Variable Speed Drive
Application	Simple Machine
Motor Type	Three-Phase Asynchronous Motor
Motor Power	2.2 kW / 3 HP
Rated Supply Voltage	380…460 VAC, 3 Phase
Supply Voltage Tolerance	-15%…+10%
Supply Frequency	50/60 Hz ±5%
Output Voltage	380…460 VAC, 3 Phase
Line Current	8.8 A at 380 V / 7.2 A at 460 V, Heavy Duty
Apparent Power	5.7 kVA at 460 V
Prospective Line Isc	5 kA
Continuous Output Current	5.5 A, Heavy Duty
Maximum Transient Current	8.3 A for 60 seconds
Output Frequency	0.5…400 Hz
Nominal Switching Frequency	4 kHz
Adjustable Switching Frequency	2…12 kHz
Speed Range	1…20 for asynchronous motor
Motor Control Profiles	V/F, Quadratic V/F Energy Saving, Sensorless Flux Vector Control
Motor Slip Compensation	Factory Preset / Adjustable
Transient Overtorque	170…200% of nominal motor torque
Braking Torque	Up to 150% with braking resistor / Up to 70% without braking resistor
EMC Filter	Without EMC Filter
Cooling	Integrated Fan
Communication Protocol	Modbus RTU
Communication Interface	2-Wire RS-485
Communication Connector	RJ45, Front Face
Modbus Transmission Rate	4800, 9600, 19200, 38400 bit/s
Modbus Address	1…247
Analog Input	1 × AI1, Configurable 0…20 mA / 0…10 V / 0…5 V
Digital Inputs	4 × Programmable LI1…LI4, 24 V
Analog Output	1 × AO1, Configurable 0…10 V / 0…20 mA
Analog Output Resolution	8 bit
Logic Output	LO+ / LO-
Relay Output	1 × C/O, R1A / R1B / R1C
Minimum Relay Switching Current	5 mA at 24 VDC
Relay Switching Capacity	Up to 3 A at 250 VAC resistive / 4 A at 30 VDC resistive
Acceleration / Deceleration Ramp	Linear 0…999.9 s / S Ramp
Stopping Method	DC Injection Braking
Reference Potentiometer Supply	5 VDC, 4.75…5.25 V, <10 mA
Logic Input Supply	24 VDC, 20.4…28.8 V, <100 mA
Protection Functions	Overvoltage, Undervoltage, Overcurrent, Overheating, Motor Short Circuit, Input Phase Loss, Motor Thermal Protection
Frequency Resolution	10-bit Analog Input / 0.1 Hz Display
Reference Response Time	20 ms ±1 ms
Protection Rating	IP20; IP41 at Top with Protective Cover
Pollution Degree	2
Operating Temperature	-10…+55°C without derating
Extended Operating Temperature	55…60°C with 2.2% current derating per °C
Storage Temperature	-25…+70°C
Relative Humidity	5…95%, non-condensing
Operating Altitude	≤1000 m without derating
Shock Resistance	15 gn for 11 ms
Standards	EN/IEC 61800-3, EN/IEC 61800-5-1
Certifications	CE, EAC, KC
Noise Level	50 dB
Dimensions (W × H × D)	105 × 143 × 151 mm
Net Weight	1.1 kg
Mounting Position	Vertical ±10°
Applications	Textile Machines, Machine Tools, Material Handling, Packaging, Printing, Woodworking, Ceramic Machines
Warranty	18 Months
