Rp13.000.000,00

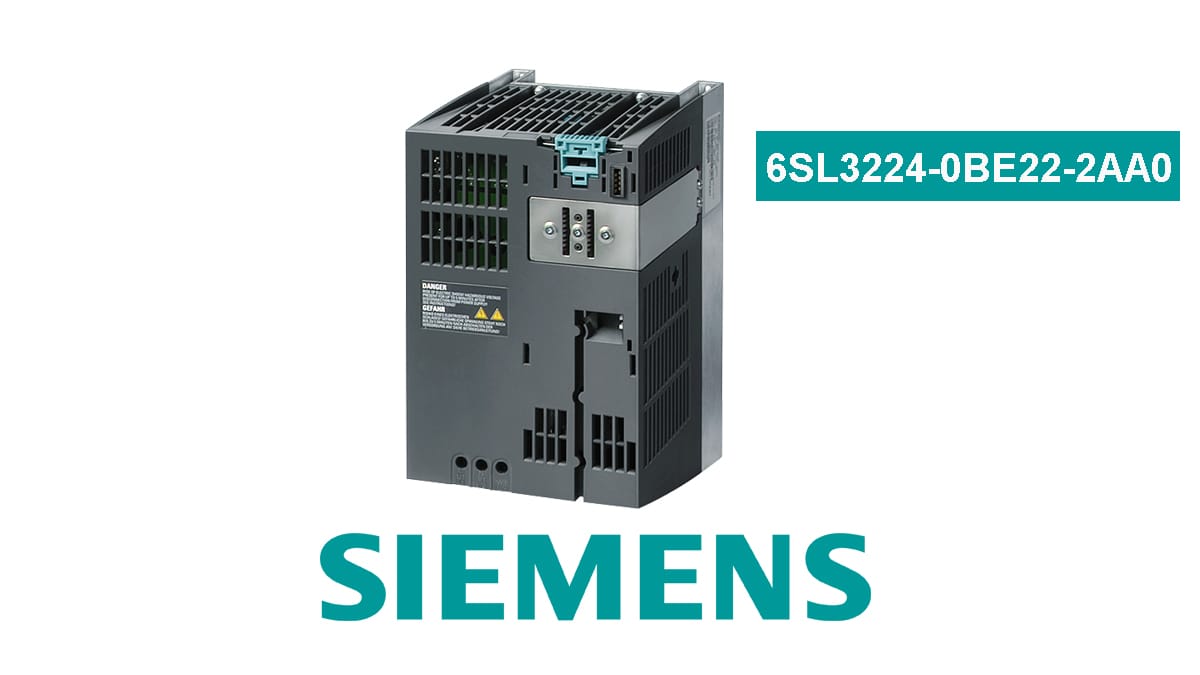

Siemens 6SL3224-0BE22-2AA0 is a SINAMICS G120 PM240 power module with an integrated Class A line filter and built-in braking chopper, designed for reliable and efficient three-phase motor drive applications. Operating on 380–480 V AC, it delivers stable performance, high overload capability, and robust protection, making it ideal for industrial automation, pumps, fans, conveyors, and general drive systems.
Worldwide Shopping
Guaranteed Satisfaction
Guaranteed Money Back
Siemens 6SL3224-0BE22-2AA0 adalah modul daya **SINAMICS G120 PM240** dengan filter kelas A terintegrasi dan **braking chopper (rem DC)** built-in, dirancang untuk solusi pengendalian dan drive motor industri yang stabil, efisien, dan andal. Modul ini sangat cocok untuk dipasang dalam sistem drive yang membutuhkan performa tinggi, proteksi listrik, serta kemampuan overload yang kuat.
Modul daya SINAMICS G120 PM240 ini memberikan kombinasi kemampuan proteksi, performa overload tinggi, dan keandalan operasional yang kuat, cocok untuk lingkungan industri yang menuntut kontinuitas operasional. Filter kelas A dan braking chopper terintegrasi memberikan stabilitas suplai dan efisiensi pengereman yang lebih baik dibandingkan modul standar. Desainnya yang ringkas serta proteksi IP20 memudahkan instalasi dalam panel kontrol.
| Parameter | Specification |
|---|---|
| Model | 6SL3224-0BE22-2AA0 |
| Product Family | SINAMICS G120 PM240 Power Module |
| Type | Power Module with Integrated Class A Filter and Braking Chopper |
| Input Voltage | 3 AC 380…480 V ±10%, 47–63 Hz |
| Rated Power | 2.2 kW (3.0 hp) at 400 V AC |
| Rated Current (LO / HO) | 5.9 A (LO / HO) |
| Input Current | 6.1 A (with line reactor), 7.6 A (without) approx. |
| Output Current Max | 11.8 A |
| Overload Capability | 200% for 3s, 150% for 57s, 100% for 240s |
| Ambient Operating Temperature | -10 °C to +50 °C |
| Protection Class | IP20 (without Control Unit and BOP) |
| Dimensions (HxWxD) | 270 × 153 × 165 mm |
| Weight | ~4.0–4.3 kg |
| Line Filter | Integrated Class A |
| Braking Chopper | Integrated (requires external resistor) |
| Cooling | Internal air cooling |
Harga: Rp. 13.000.000 – Rp. 14.000.000
