Description

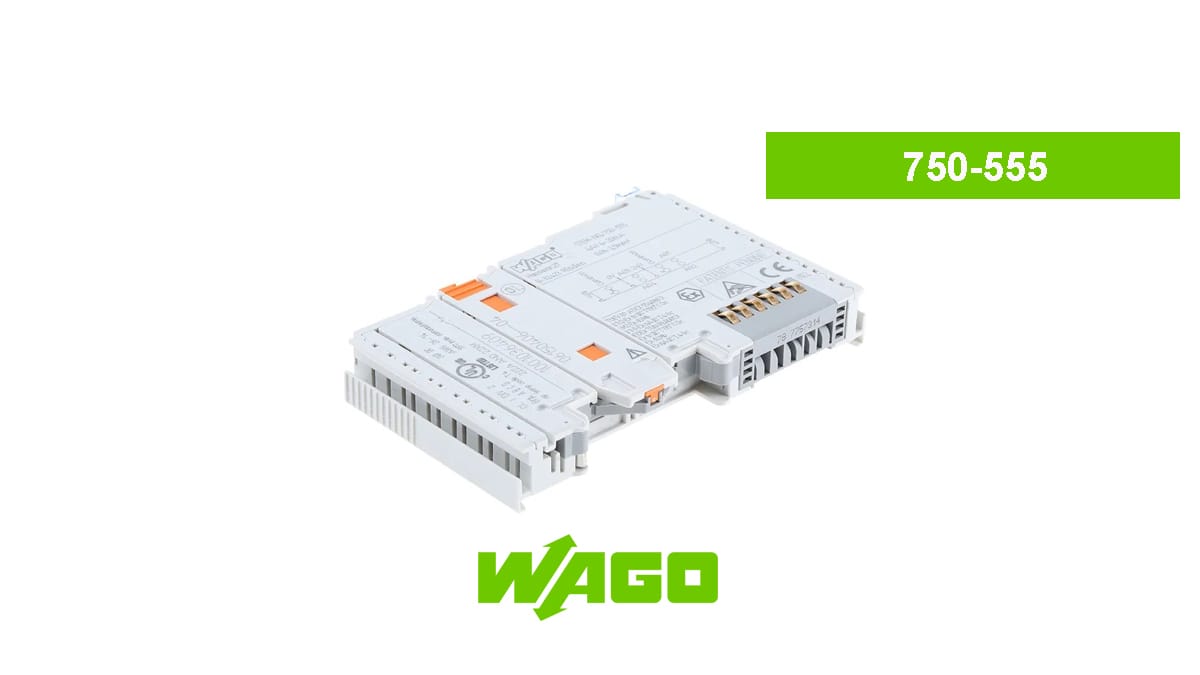

WAGO PLC I/O Module
The WAGO I/O SYSTEM 750 series PLC I/O module has 4 analogue output channels. The analogue output module creates a standardised signal ranging between 0mA and 20mA or 4mA and 20mA. The output signal is electrically isolated and will be transmitted with a resolution of 12bits. This current analogue output module uses power derived from the field side (loop powered). These output channels have one common ground potential. It is used with 750 series.
Features and Benefits
Remote I/O modular system for all the functions
Makes it easier to connect all the I/Os
Communication with PC and PLCs
Colour codes according to type of signal
DIN mounting
Dimension are 100mm x 12mm x 64mm
Operating temperature ranges between 0°C and 55°C
Power is derived from the field side
Applications
Industrial automation
Robotics
Automobile industry
Certifications
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
CE certified
