Description

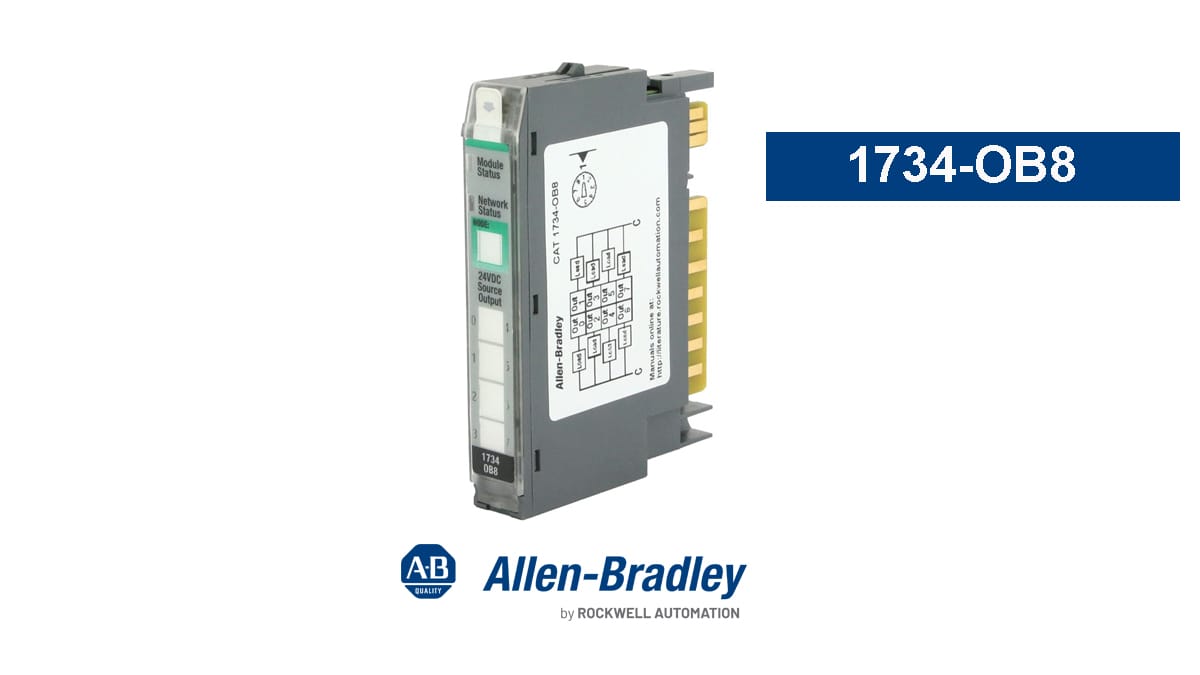

Allen-Bradley 1734-OB8 POINT I/O 24V DC 8-Channel Source Output Module, Non-isolated; Number of Outputs: 8 (1 group of 8) non-isolated, sourcing; ON-State Voltage Range: 10V DC min, 24V DC nom, 28.8V DC max; ON-State Voltage Drop: 0.2V DC max; ON-State Current: 1.0mA min per channel; OFF-State Voltage: 28.8V DC max; OFF-State Leakage: 0.5mA max; Output Current Rating: 1.0A per output, not to exceed, 3.0A maximum per module; Pointbus Current: 75mA max @ 5V DC; Power Dissipation: 2.0W @ 28.8V DC; Supply Voltage: 24V DC; Voltage Range: 10-28.8V DC; Supply Current: 32mA
