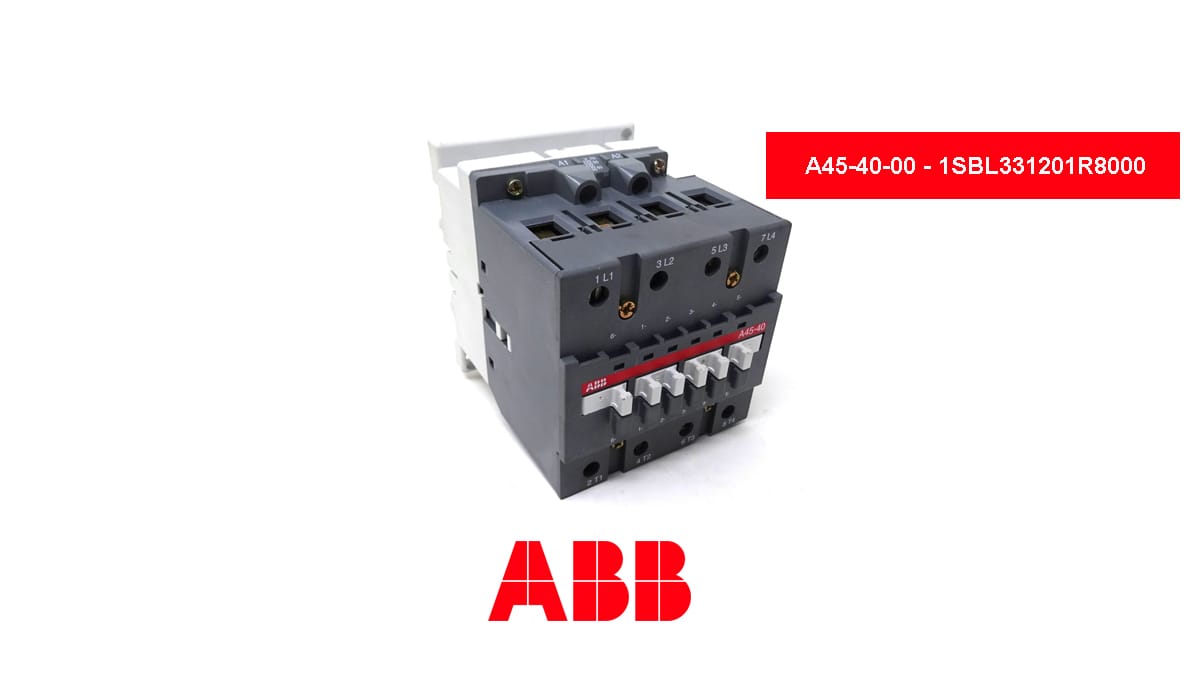

ABB A45-40-00 220-230Vac 4P 45A – 1SBL331201R8000

Sold by: admin

Brand: ABB

Rp4.500.000,00

Cek Price Range dibawah atau hubungi Customer Service kami. Terimakasih

ABB A45-40-00 (1SBL331201R8000) is a 4-pole industrial AC power contactor rated for 45 A at 220-230 V AC (50/60 Hz) designed for reliable switching of motors, heaters, lighting and other industrial loads. Built to IEC 60947-4-1 standards with laminated magnet coil and screw terminal connections, it provides robust performance in industrial control panels and power circuits

Add to cart

Buy Now

Brand: ABB

ABB A45-40-00 220-230Vac 4P 45A Contactor – 1SBL331201R8000

Name: CV. Armada Perkasa Nusantara
Address: ID

ABB A45-40-00 220-230Vac 4P 45A (1SBL331201R8000) adalah contactor 4-kutub seri A45 yang dirancang untuk mengendalikan power circuit AC pada instalasi industri. Contactors ini ideal untuk switching dan kontrol beban listrik hingga 45 A pada tegangan kontrol 220-230 V AC, dengan kemampuan operasi pada frekuensi standar 50/60 Hz. Produk ini menggunakan magnet coil terlapis (laminated magnet circuit) dan kontak NO (Normally Open) untuk kontrol motor, pemanas, lampu, dan beban non-induktif/sedikit induktif.

Dirancang sesuai standar internasional IEC 60947-4-1 dan EN 60947-4-1, contactor ini memiliki 4 main poles, tahan terhadap temperatur operasi yang luas, serta kokoh untuk aplikasi distribusi tenaga dan kontrol mesin industri. Terminal screw yang kuat memudahkan instalasi panel kontrol dan sistem distribusi listrik.

Contactor daya 4 kutub untuk beban AC industri
Rated operational current AC-3: 40 A @ 220-230/240 V
Rated operational power: hingga ~15 kW @ 230 V AC
Rated insulation voltage: 1000 V
Operating frequency range: 25 – 400 Hz
Magnet coil AC 220-230 V 50/60 Hz
Standar IEC 60947-4-1, EN 60947-4-1 compliance
Screw terminal connections untuk main circuit
Cocok untuk motor, lampu, pemanas, dan beban kontrol

Reviews

There are no reviews yet.

Be the first to review “ABB A45-40-00 220-230Vac 4P 45A – 1SBL331201R8000”

Specification

ABB A45-40-00 – Technical Specifications
Brand	ABB
Model / Part Number	1SBL331201R8000
Product Type	4-Pole AC Power Contactor
Main Contacts	4 NO (Normally Open)
Control Voltage	AC 220-230 V 50 Hz / 230-240 V 60 Hz
Rated Operational Current AC-3	40 A @ 220-230/240 V AC
Rated Operational Power AC-3	~15 kW @ 220-230 V AC; ~22 kW @ 380-400 V AC
Rated Insulation Voltage (Ui)	1000 V AC (IEC)
Make/Break Capacity	Rated making: 10×Ie; breaking: 8×Ie (AC-3)
Frequency Range	25 – 400 Hz
Operate Time	8-27 ms closing; 4-11 ms opening
Terminal Type	Screw terminals for main power connections
Standards Compliance	IEC 60947-4-1, EN 60947-4-1
Dimensions (Approx.)	92 × 119.5 × 110 mm :contentReference[oaicite:14]{index=14}
Weight	~1.39 kg :contentReference[oaicite:15]{index=15}
Ambient Temp. Operation	-40 °C … +70 °C storage, -40 °C … +55 °C operation :contentReference[oaicite:16]{index=16}
