Description

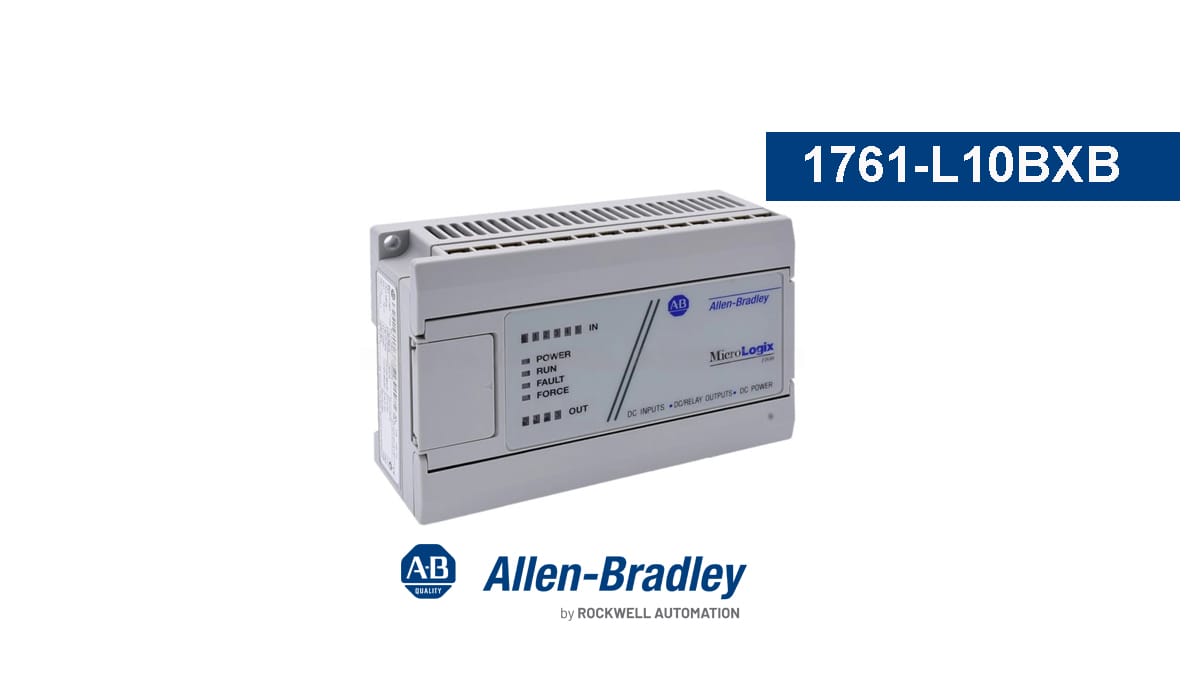

The 1761-L10BXB is MicroLogix 1000 Programmable Logic Controller (PLC) by Allen-Bradley. This controller is designed for use in a micro or small automation requirements, operable at an input supply voltage of 24 VDC. It has built-in Six (6) 24 VDC inputs, Two (2) 24 VDC sourcing outputs, and Two (2) relay outputs. It has built-in 1 K EEPROM memory which is allocated for 737 instruction words and 437 data words. This controller has an integrated RS232 communication port that supports the DF1 communication protocol.
Specification
Technical specifications for 1761-L10BXB
| Manufacturer | Rockwell Automation |
|---|
| Brand | Allen-Bradley |
|---|
| Part Number/Catalog No. | 1761-L10BXB |
|---|
| Manufacturer | Rockwell Automation |
|---|
| Controller | MicroLogix 1000 |
|---|
| Brand | Allen-Bradley |
|---|
| I/O Count | 10 points |
|---|
| Product Family | MicroLogix |
|---|
| Input Type | 24V dc |
|---|
| Product Description | MicroLogix 1000 Programmable Logic Controller (PLC) |
|---|
| Output Type | Relay/24V dc |
|---|
| Power supply | 20.4-26.4V dc |
|---|
| Power Supply | 24V dc |
|---|
| Inrush Current | 30A for 4 ms |
|---|
| Safety Feature | Master Control Relay |
|---|
| Integrated discrete inputs | Six (6) 24 VDC discrete inputs |
|---|
| Digital Outputs | 2 Contact Outputs, 2 Source 24V DC |
|---|
| Integrated FET outputs | Two (2) FET outputs |
|---|
| Product Lifecycle Status* | Discontinued/Obsolete |
|---|
| Integrated Relay outputs | Two (2) Relay outputs |
|---|
| Integrated Analog input | None |
|---|
| Integrated High-Speed Counter input | None |
|---|
| Built-in communication interfaces | One (1) RS232 |
|---|
| Supported Protocol | DF1 |
|---|
| Embedded memory | 1 K EEPROM memory; 737 Instruction words; 437 data words. |
|---|
