Description
Double Motor Module, Book Sized Frame

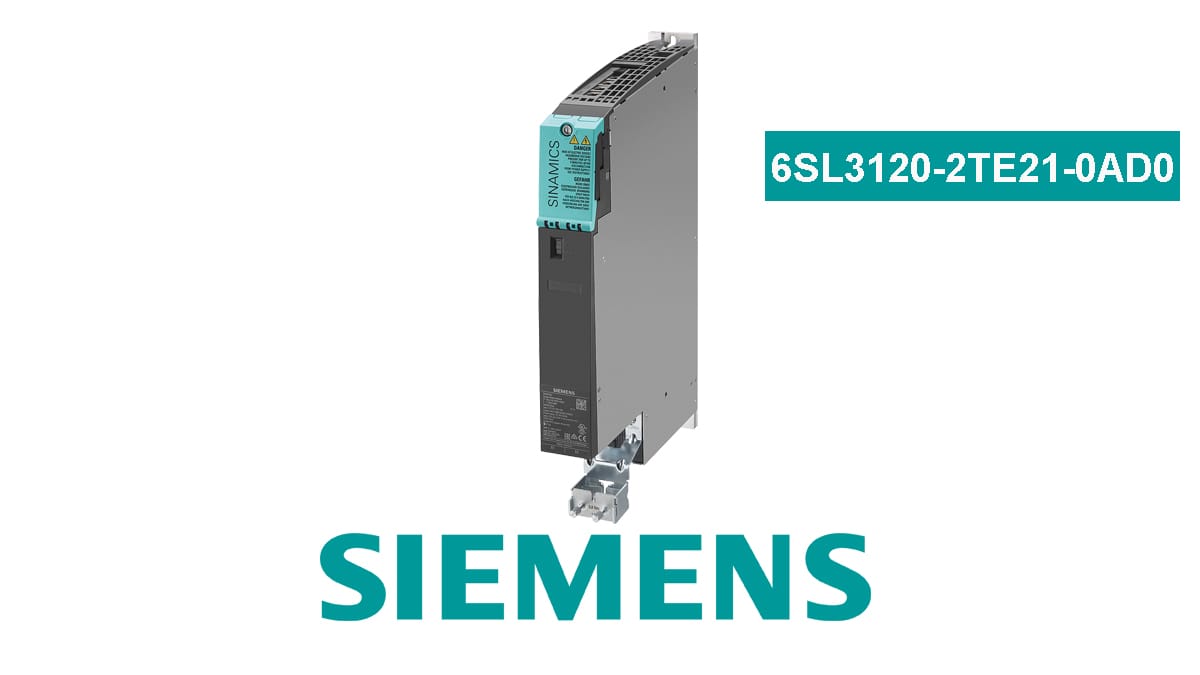

SIEMENS – 6SL3120-2TE21-0AD0 – SINAMICS S120 Double Motor Module Input: DC 600V Output: 3-PH 400V, 2x9A. Booked sized fram with internal air cooling, optimised pulse sample support of the extended integrated safety functions.
Double Motor Module in booksize compact design for the SINAMICS S120 drive system. In standard form, the Double Motor Modules in booksize compact format have two DC link connections, two electronic power supply connections and four DRIVE-CLiQ sockets. The module receives its control information via DRIVE-CLiQ from the CU320-2 Control Unit. The Double Motor Module covers the three-phase voltage range from 380 V up to 480 V 3AC and contains an internal air cooler as well as Safety Integrated Level 2 according to IEC 61508.
Double Motor Module Features
Double motor input 9A
2 DC link connections via integrated DC link busbars
2 electronics power supply connections via integrated 24 V DC busbars
4 DRIVE-CLiQ sockets
2 safe standstill inputs (1 input
