Description
Analogue Expansion Modules
Input, Output and Combined versions
Inputs can be differential or single ended
Outputs are single ended
Terminal identification inside cover

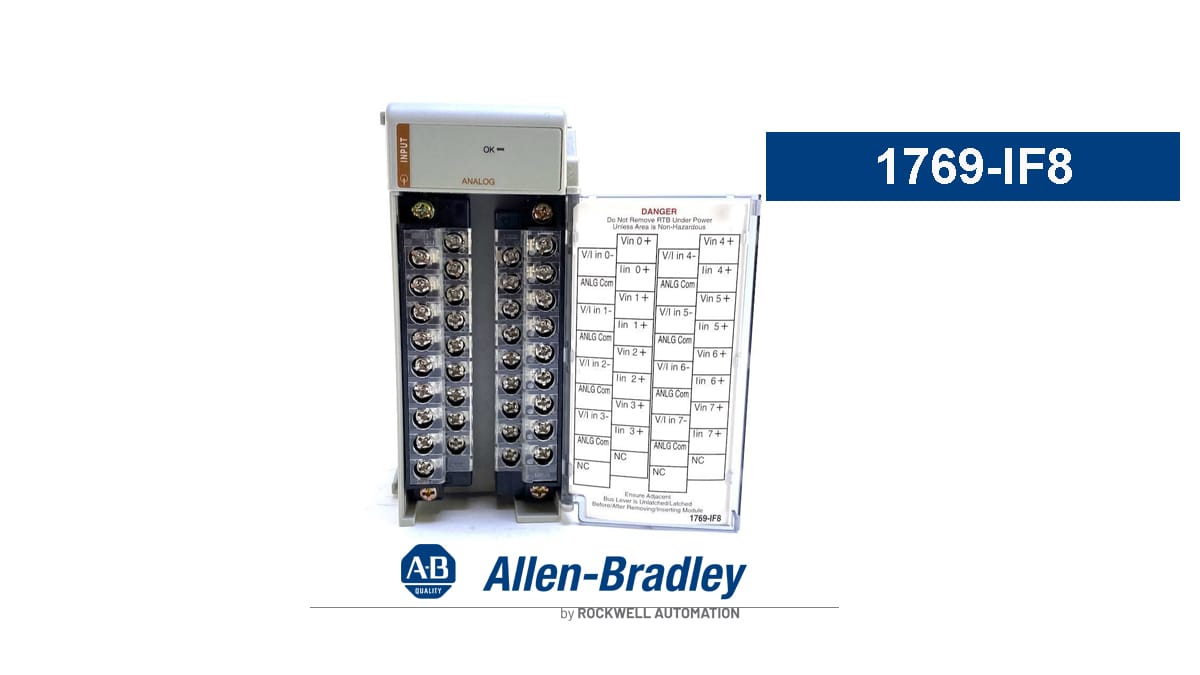

Allen Bradley PLC I/O Module For Use With MicroLogix 1500 Series, 8 Inputs, 30V AC/DC – 1769-IF8
This Allen Bradley PLC I/O module from Rockwell Automation acts as a messenger between your central processor and an I/O device, such as a proximity switch or a push button. It’s compatible with Rockwell Automation’s range of MicroLogix 1500 series controllers that allow for the accurate control of automated industrial tasks. The I/O module’s eight input channels help you to easily expand the capabilities of your PLC without additional hardware. For versatility, its inputs can be single-ended or differential. Thanks to its removable terminal blocks, this device is easy to pre-wire.
Features and Benefits
• Wide operating temperature range of 0°C to +50°C for compatibility with industrial conditions
• Compatible with various power supplies thanks
Spesification
Technical specifications for 1769-IF8
| Manufacturer | Rockwell Automation |
|---|
| Brand | Allen-Bradley |
|---|
| Part Number/Catalog No. | 1769-IF8 |
|---|
| Product Line | CompactLogix |
|---|
| Module Type | Analog Input Module |
|---|
| Input Type | Analog Input |
|---|
| No. of Inputs: | 8 Inputs; Differential or Single Ended Inputs |
|---|
| Communication Cable | 8 Point |
|---|
| Power Supply Distance rating: | 8 |
|---|
| Shipping Weight | 2 pounds |
|---|
| Input current range: | 0-21 mA |
|---|
| Shipping Dimensions | 8 x 8 x 5 inches |
|---|
| Current signal normal ranges: | 0-20mA; 4-20 mA |
|---|
| Series | A and B |
|---|
| Current signal full range: | 0-21 mA; 3.2 – 21 mA. |
|---|
| Distance Rating | 8 Modules |
|---|
| Input voltage range: | 0-10.5VDC |
|---|
| Working Voltage Rating | 30 Volts AC or 30 Volts DC |
|---|
| Voltage signal normal ranges: | ±10V DC, 0 …10V DC, 0…5V DC, 1…5V DC |
|---|
| Voltage signal full range: | ±10.5V DC, -0.5…10.5V DC, -0.5…5.25V DC, 0.5…5.25V DC |
|---|
| Replacement Terminal Block | 1769-RTBN18 |
|---|
| Compatible Controllers: | MicroLogix 1500; CompactLogix |
|---|
| Wire Type | Copper-90 degrees Celsius |
|---|
| Resolution: | 16 bits (unipolar) 15 bits plus sign (bipolar) |
|---|
| Wire Size (Solid) | 22-14 AWG |
|---|
| Channel Diagnostics: | Over- or under-range by bit reporting, process alarms |
|---|
| UPC | 10662468861134 |
|---|
| Recommended cable: | Belden™ 8761 (shielded) |
|---|
| Dimension: | 118 mm (height) x 87 mm (depth) x 35 mm (width) [52.5 mm (width) for 1769-IF8] Height including mounting tabs is 138 mm 4.65 in (height) x 3.43 in (depth) x 1.38 in (width) [2.07 in (width) for 1769-IF8] Height including mounting tabs is 5.43 in |
|---|
