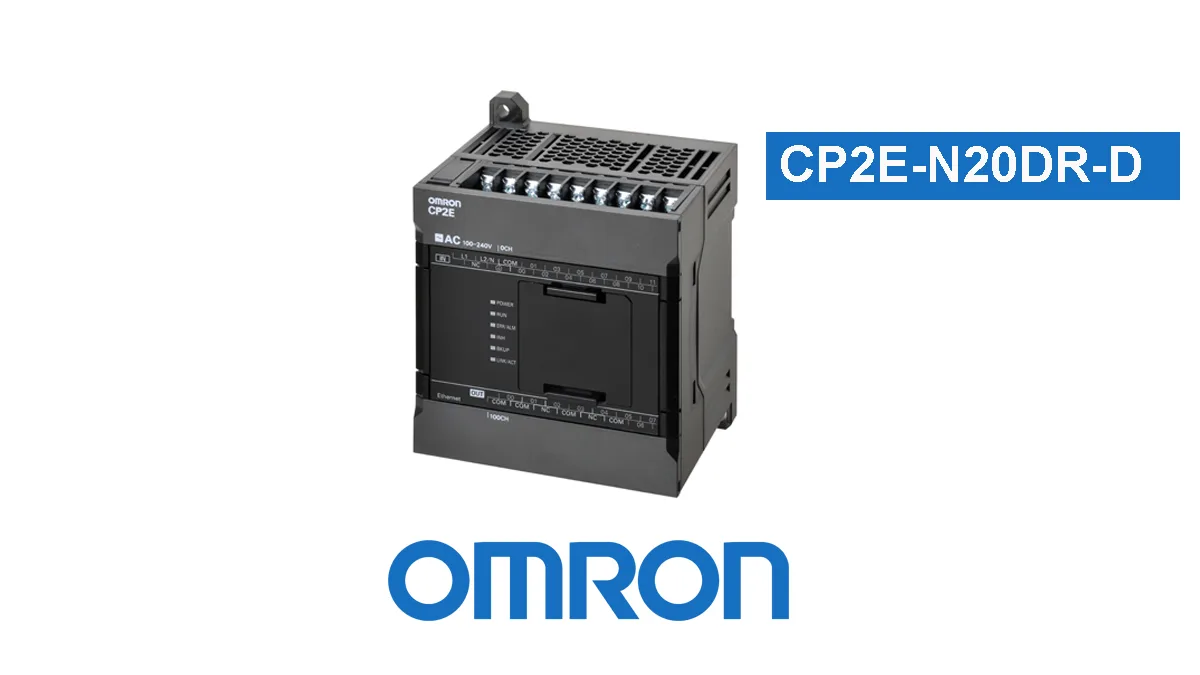

Omron CP2E-N20DR-D

  • account_circle
  • calendar_month 20/01/2025
  • visibility 45
  • comment 0 komentar
  • label

CP2E series compact PLC – Network type; 12 DI, 8DO; Relay output; Power supply 24 VDC; 10 kStep Program memory

Brand:
SKU: CP2E-N20DR-D Category: Tag: Brand:

Description

Omron Industrial Automation CP2E Programmable Logic Controllers are micro programmable controllers designed to support data collection and Machine-to-Machine (M2M) communication. Omron Industrial Automation CP2E controllers are an efficient solution for flexible production, traceability, and machine monitoring. The series offers a version with two built-in Ethernet ports with Ethernet switching functionality. These programmable logic controllers also provide up to three serial ports and an optional four-axis positioning function with linear interpolation.

Spesification

Supply voltage typeDC
Input typePNP/NPN
Number of digital inputs12
Output typeRelay
Number of digital outputs8
Program capacity20 K steps
Data memory capacity16 K words
Logic execution time0.23 µs
Communication port(s)Ethernet TCP/IP
Number of Ethernet ports1
Number of USB ports0
Number of RS-232 ports0
Number of RS-485 ports0
Communication option(s)Serial RS-232C, Serial RS-422, Serial RS-485
Number of encoder input channels6
Max. encoder input frequency100 kHz
Max. number of PTP axes0
Max. pulse output frequency0 kHz
Function Block programming
Battery-free memory backup
Real-time clock
Analogue option boards
Max. number of analogue I/O channels4
Max. number of local I/O points20
Max. number of expansion units0
Built-in auxiliary 24 VDC output0 mA
Operating temperature range-20-60 °C
Product Height (unpacked)90 mm
Product Width (unpacked)86 mm
Product Depth (unpacked)80 mm
Product Weight (unpacked)410 g

Datasheet

Additional information

Brand

Omron
