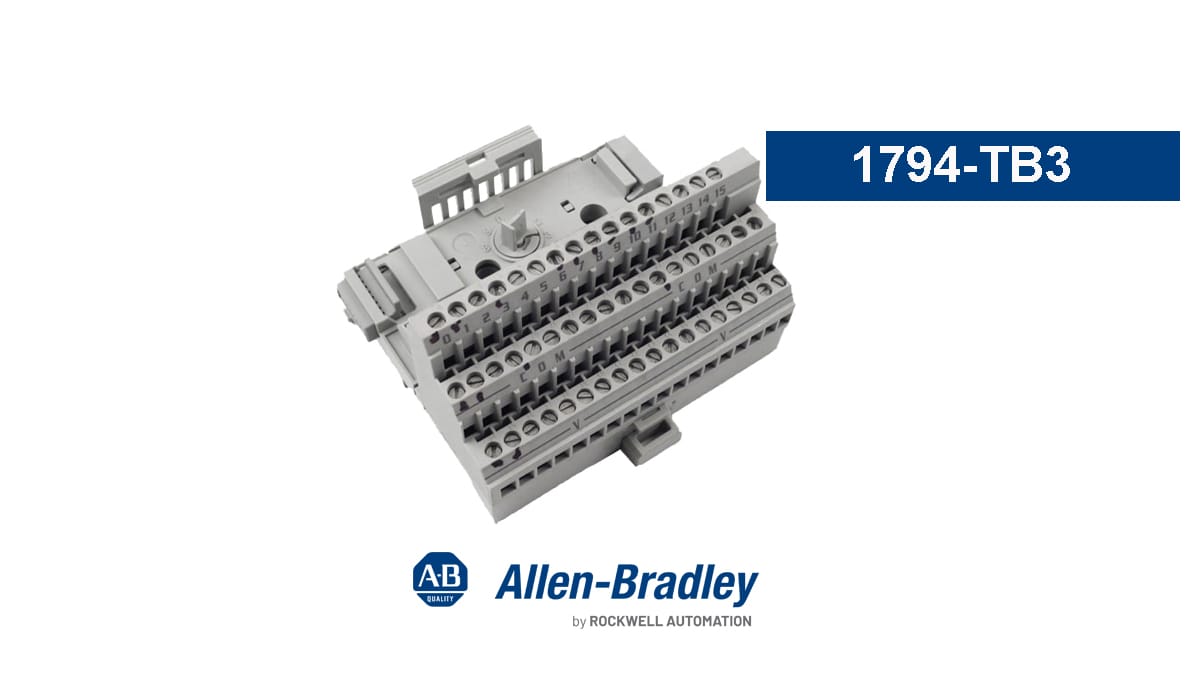

Allen-Bradley 1794-TB3 FLEX I/O Terminal Base Unit, 3-Wire Screw Termination, Cage Clamp, Series A
Allen-Bradley 1794-TB3
- account_circle admin
- calendar_month 18/01/2025
- visibility 42
- comment 0 komentar
- label
Allen-Bradley 1794-TB3 FLEX I/O Terminal Base, 3-Wire Screw, Cage Clamp, Ser. A
Product successfully added to the Quote List
Spesification
| Manufacturer | Rockwell Automation |
|---|---|
| Brand | Allen-Bradley |
| Part Number/Catalog No. | 1794-TB3 |
| Manufacturer | Rockwell Automation |
| Manufacturer | Rockwell Automation |
| Product Type | Flex I/O Terminal Base Unit |
| Brand | Allen-Bradley |
| Series | Flex I/O |
| Terminal Screw Torque | 0.56-0.79 Nm |
| Module Type | Terminal Base Unit |
| No. of Terminal strips | Three (3) |
| Supply Voltage Range max. | 125V DC/AC, 50/60Hz, 10A |
| No. of terminals | 52 |
| Connection type | Screw clamp |
| Isolation Voltage | 125V Continuous |
| No. of terminal rows | 2 terminal rows |
| Terminal strip assignment | Top: I/O terminals Middle: Common terminal bottom: Supply terminal |
| Voltage Rating | 24V DC/AC, 120V DC/AC |
| Terminal row assignments | 1 row with 16 terminals; 1 row with 18 terminals |
| I/O terminals: | Sixteen (16) terminals |
| Wire Size | 0.34-3.3mm^2 |
| Terminal assignment | 0-15: I/O connections 16-33: Voltage common connection 34-51: Voltage + connection |
| Common / Supply terminals | Eighteen (18) terminals |
| Dimensions | 94x94x69 mm |
| Conductors | 12 gauge or 4 mm2 (max); 22 gauge or 0.35 mm2 (min) 3/64 inch or 1.2 mm insulation thickness |
| Daisy-chaining: | Supported |
| UPC | 10662468112359 |
| Voltage rating, max. | 132 VAC |
| Backplane current draw | 640 mA @ 5VDC |
| UNSPSC | 32151602 |
| Current capacity, max | 10:00 AM |
| Voltage rating | 120 VAC |
| Channel isolation | Module based |
| Current rating | 10 Amperes |
| Dimensions (HxWxD) | 94 mm x 94 mm x 69 mm |
| Compatible Modules | 1794-IA8, 1794-IA8I, 1794-IA16, 1794-OA8, 1794-OA8I, 1794-OA16, 1794-IB8, 1794-IB16XT, 1794-IB10XOB6, 1794-IB10XOB6XT, 1794-IC16, 1794-IG16, 1794-IH16, 1794-IV16, 1794-OB8, 1794-OB8EP, 1794-OB8EPXT, 1794-OB16, 1794-OB16D, 1794-OB16P, 1794-OB16PXT, 1794-OC16, 1794-OG16, 1794-OV16, 1794-OV16P, 1794-OW8 and 1794-OW8XT |
| FlexBus current draw: | 640 mA @ 5VDC |
| Installation: | DIN Rail |
