Description
Micro 850 Controller, (14) 120V AC Digital Inputs (79VAC – 132VAC), (10) Digital Relay Outputs (5V-125V DC, 5V-265V AC), Including: (2) High Speed Output (Outputs 0…1) and (8) Standard Output (Outputs 2 and higher), 24V DC Power

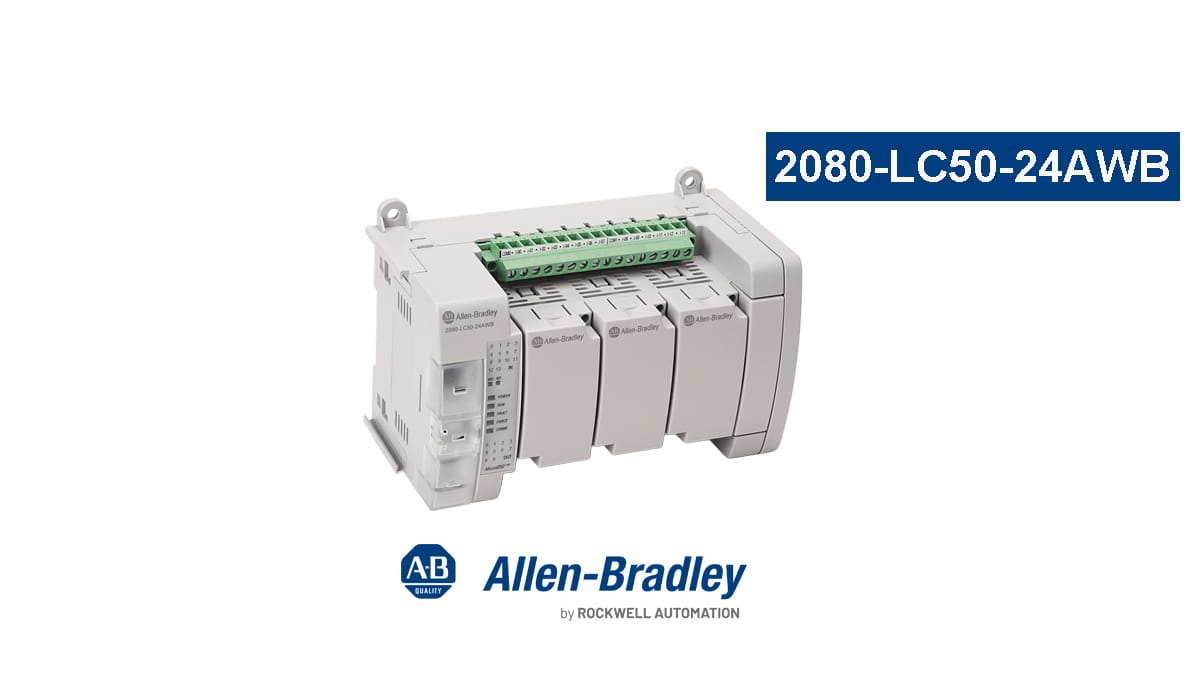

Allen-Bradley 2080-LC50-24AWB
- account_circle admin
- calendar_month 21/01/2025
- visibility 49
- comment 0 komentar
- label
Micro850 EtherNet/IP Controller, 14 120V AC Inputs, 10 Relay Output, 24 DC Input Power, Embedded USB Programming Port, Ethernet Port and Non-Isolated RS232/485 Serial Port, 3 Plug-In Ports
Product successfully added to the Quote List
Spesification
Attribute | Value |
|---|---|
| Manufacturer Series | Micro850 |
| Number of Inputs | 14 |
| Output Type | Relay |
| For Use With | Micro800 Series |
| Input Type | AC |
| Number of Digital Inputs | 10 |
| Voltage Category | 24 V dc |
| Number of Outputs | 10 |
| Number of Digital Outputs | 14 |
| Network Type | Ethernet, USB |
| Interface | Ethernet |
| Length | 158mm |
| Depth | 80mm |
| Width | 90mm |
| Mounting Type | DIN Rail |
| Number of Communication Ports | 2 |
| Output Current | 16 mA |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +65°C |
| Dimensions | 158 x 90 x 80 mm |
| Communication Port Type | RS232, RS485, Serial |
Additional information
| Brand | Allen Bradley |
|---|
