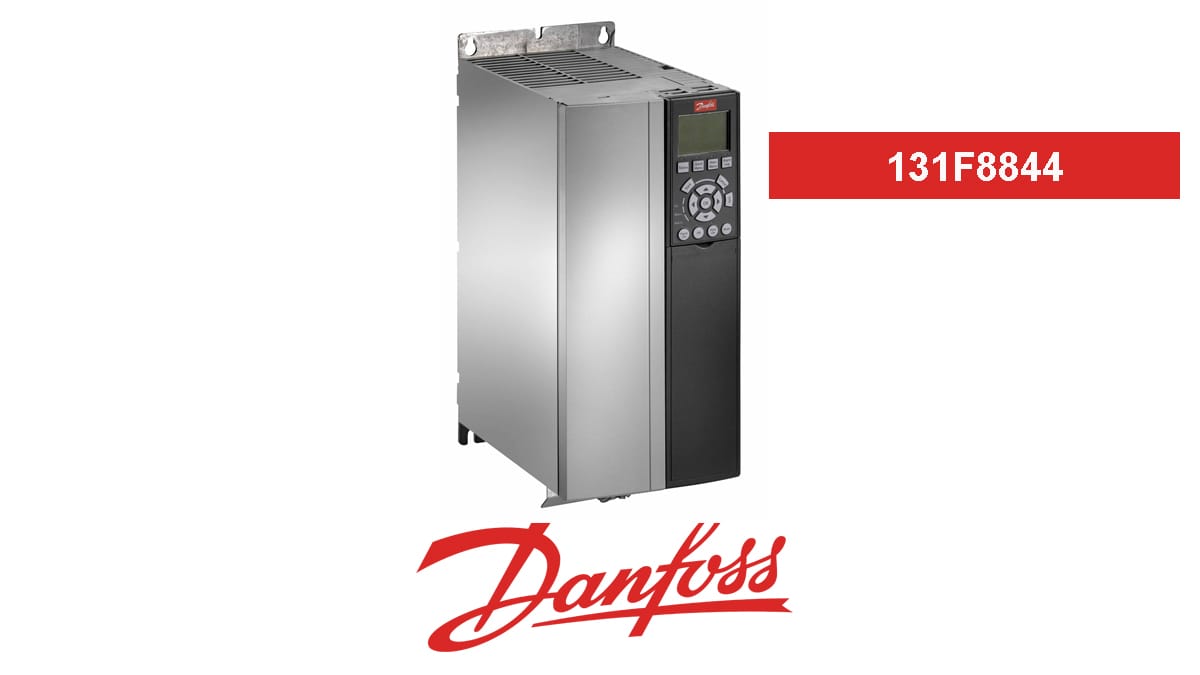

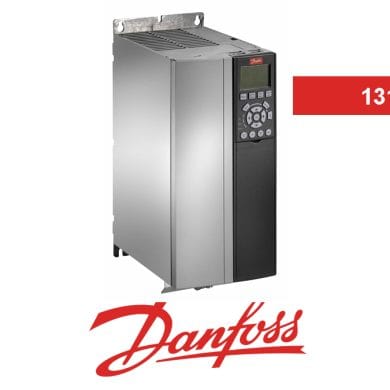

Danfoss FC-302 11kW 380V/500V 3ph AC – 131F8844

Sold by: admin

Rp60.000.000,00

Danfoss VLT® AutomationDrive FC-302 131F8844 FC-302P11KT5E20H1XGXXXXSXXXXA0BXCXXXXDX is an 11kW three-phase variable frequency drive designed for industrial automation and advanced motor control. Rated for 380–500 VAC input, it supports asynchronous, permanent magnet, and synchronous reluctance motors and features Automatic Motor Adaptation, energy optimization, Safe Torque Off, and integrated motion control.

Cek Price Range dibawah atau hubungi Customer Service kami. Terimakasih

Add to cart

Buy Now

Danfoss VLT® AutomationDrive FC-302 11kW 380-500V 3ph AC (131F8844) – FC-302P11KT5E20H1XGXXXXSXXXXA0BXCXXXXDX adalah variable frequency drive (VFD) berperforma tinggi yang dirancang untuk aplikasi otomasi dan kontrol motor industri. Drive ini memiliki kapasitas 11 kW dan mendukung catu daya 3-phase 380-500 VAC, sehingga cocok untuk berbagai mesin dan sistem produksi industri.

FC-302 menawarkan kontrol motor yang fleksibel untuk motor asynchronous, permanent magnet (PM), dan synchronous reluctance. Fitur seperti Automatic Motor Adaptation (AMA), Automatic Energy Optimization (AEO), Safe Torque Off (STO), serta Integrated Motion Controller membantu meningkatkan efisiensi, performa, dan kemudahan commissioning sistem.

Model 131F8844 menggunakan konfigurasi VLT® AutomationDrive FC-302 dengan IP20/Chassis, RFI Class A1/B (C1), brake chopper, dan konfigurasi standar tanpa local control panel. Drive ini ideal untuk conveyor, pump, fan, compressor, processing equipment, material handling, dan berbagai aplikasi otomasi industri.

Reviews

There are no reviews yet.

Be the first to review “Danfoss FC-302 11kW 380V/500V 3ph AC – 131F8844”

Specification

Parameter	Specification
Product Model	FC-302P11KT5E20H1XGXXXXSXXXXA0BXCXXXXDX
Order Number	131F8844
Product Series	VLT® AutomationDrive FC-302
Product Type	Variable Frequency Drive / Frequency Converter
Rated Power	11 kW
Motor Power	11 kW
Input Voltage	3 x 380–500 VAC
Input Frequency	50/60 Hz
Output Voltage	0–100% of supply voltage
Typical Motor Current	Approx. 22 A at 400 V, normal overload
Output Frequency	0–590 Hz
Motor Compatibility	Asynchronous, Permanent Magnet, Synchronous Reluctance
Control Method	VVC+, Vector Control, Sensorless Control
Overload Capacity	110% for 60 seconds, Normal Overload
Enclosure	IP20 / Chassis
RFI Filter	RFI Class A1/B (C1)
Brake	Integrated Brake Chopper
Local Control Panel	No Local Control Panel
Safety Function	Safe Torque Off (STO)
Motor Adaptation	Automatic Motor Adaptation (AMA)
Energy Optimization	Automatic Energy Optimization (AEO)
Motion Control	Integrated Motion Controller (IMC)
Cooling	Forced Air Cooling
Mounting	Panel Mount
Typical Applications	Conveyor, Pump, Fan, Compressor, Material Handling, Processing Machinery
