Description

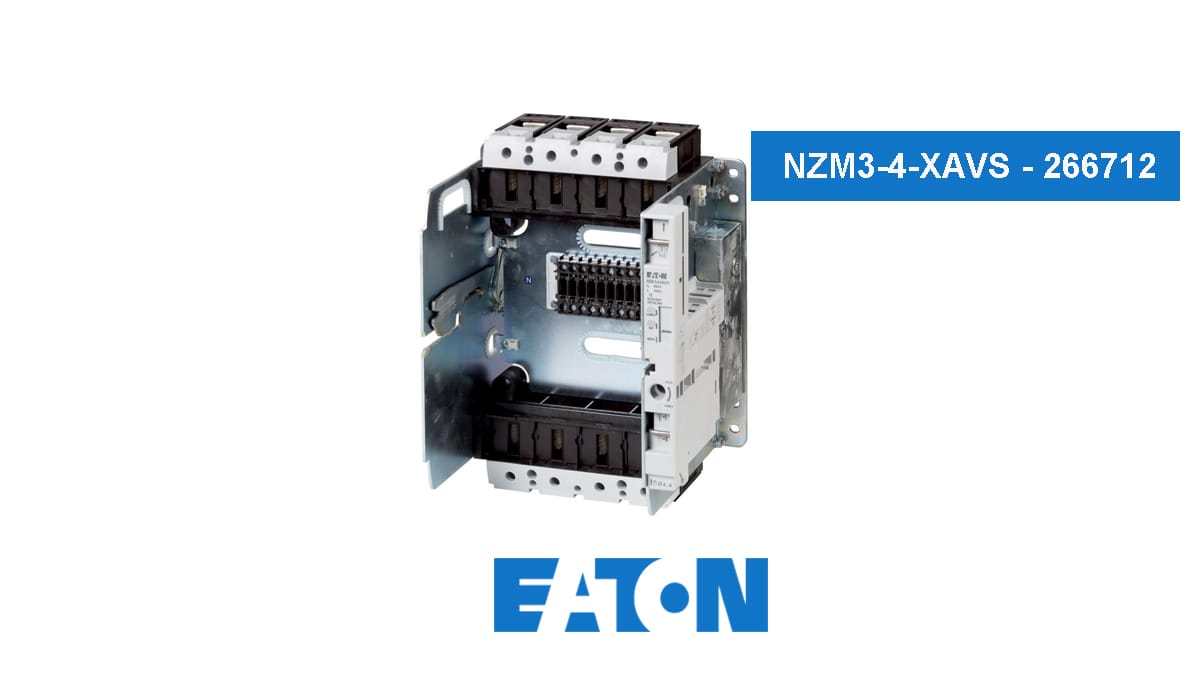

Extension base 4p. – Chassis part power circuit breaker 4-p NZM3-4-XAVS – Eaton – 266712 – 4015082667122: Extension base 4p. NZM3-4-XAVS, rated current In=610 A, number of poles=4, version as busbar adapter=no, version as built-in device=yes, main circuit connection type=screw connection, optional accessories for the circuit breaker series NZM offers an extensive portfolio of possible applications for worldwide use . Assembly is flexible and easy thanks to modular functional groups. Notes: For NZM circuit breakers and N switch disconnectors. Not UL/CSA approved. Not for Ue > 690V. For switches with pull-out insert. Also for reserve places. 3 positions: retracted, test, extended. The positions are indicated mechanically by pointers. Additional electrical display possible using auxiliary contacts. One opener or closer M22-(C)K01 or M22-(C)K10 for each position. Alternatively, double contacts M22-CK.. Complete with auxiliary conductor connector. All connections from auxiliary switches (HIA, HIN, HIV) and voltage releases U/A to the auxiliary conductor connector are already in place. Maximum occupancy: 3 HIN contacts, 2 HIA contacts, 2 HIV contacts. Cannot be combined with adapter set NZM4/NZM14 (NZM4-XSAS14-..) or N(ZM)4/N(ZM)12. Can be used for: NZM3-4, N3-4
