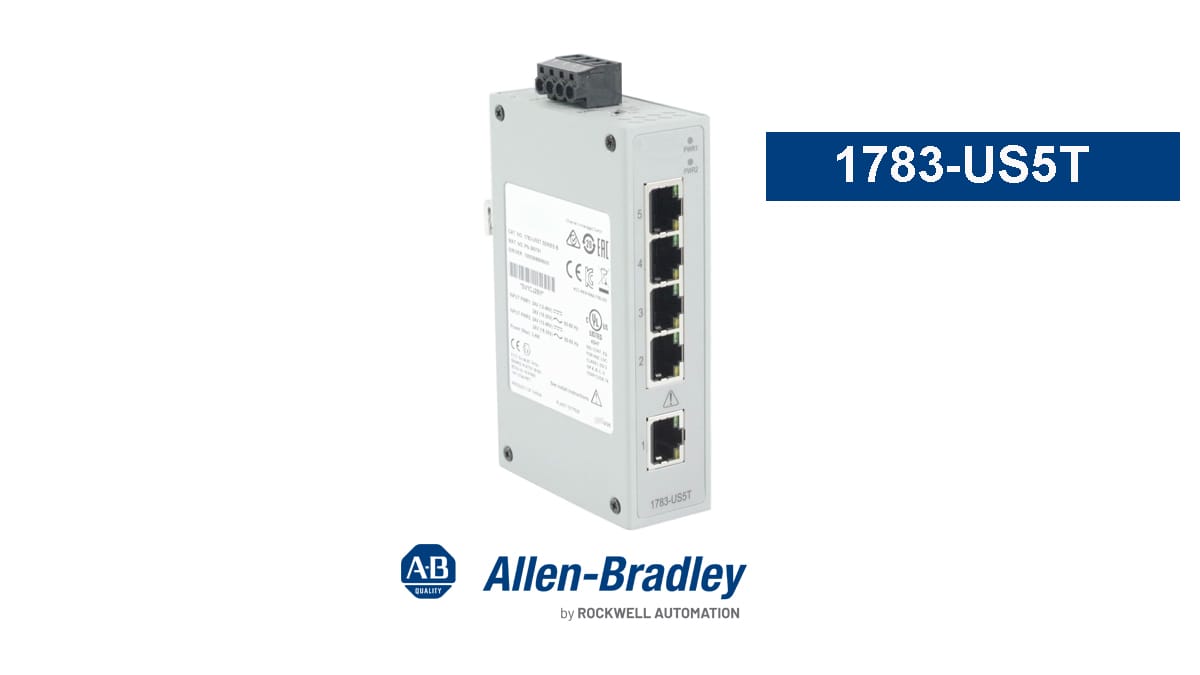

Stratix 2000 unmanaged switch, 5 copper 10/100 ports
The 1783-US5T is an industrial Ethernet switch from Allen-Bradley. This product is part of the Stratix 2000 unmanaged ethernet switch catalog featuring Five (5) Fast Ethernet copper ports supporting 10/100 Mbps transmission speed. This Ethernet switch is powered by an external 24 VDC / 24 VAC supply voltage with a power consumption of 3.4 Watts.
| Manufacturer | Rockwell Automation |
|---|---|
| Brand | Allen-Bradley |
| Manufacturer: | Rockwell Automation / Allen-Bradley |
| Product Family: | Stratix Ethernet Switch |
| Product Type: | Stratix 2000 managed switch |
| Part Number: | 1783-US5T |
| No. of copper ports: | Five (5) copper ports |
| Transmission speed: | 10 / 100 mbps |
| No. of fiber ports: | None |
| Supply voltage range: | 12-48V DC, 18-30V AC, 50/60 Hz |
| Nominal Supply voltage | 24 VAC / VDC |
| Power consumption: | 3.4 Watts |
| Inrush Current: | 1.85 A |
| Part Number/Catalog No. | 1783-US5T |
| Total Ports | 5 |
| RJ45 Ports | 5 Fast Ethernet |
| SFP Ports | 0 |
| Max Inrush Current | 1.85 A |
| Power Input | 24 V (12-48 V DC, 18-30 V AC, 50/60 Hz), SELV |
| Max Power Consumption | 3.4 W |
| Nom Current | DC 180 mA; AC 360 mA |
| Max Current | DC 380 mA; AC 750 mA |
| Wire Size: Ground Connection | 2.5 mm2 (14 AWG) Copper Wire Suitable for 187 degrees F (86 degrees C) Above Surrounding Ambient Temperature Outside the Enclosure, with Suitable Ring Terminal |
| Wire Size: DC Power Connection | 4 x 0.25 mm2 (12 or 24 AWG) Twisted-Pair Copper Wire Suitable for 187 degrees F (86 degrees C) Above Surrounding Ambient Temperature Outside the Enclosure |
| Power Terminal Screw Torque | 4.5x 5.0 in -lb (0.50 x 0.56 N – m) |
| Max Ground Terminal Screw Torque | 8.05 in -lb |
| Enclosure Type Rating | Open-Style/None |
| Dimensions | 4.51 x 3.02 x 1.17 in (114.5 x 76.8 x 29.6 mm) |
| Connector type: | RJ45 |
| UPC | 884951980150 |
| Wire type: | Category 5 (Cat5) based on ISO/IEC 24702; Category 5e (Cat5e) in compliance with TIA 568-B.1 |
| Enclosure type rating | None (open-style) |
| Mounting: | DIN Rail |
| Operating shock: | 15 g |
| Operating Temperature | -10 °C – +60 °C (-4 °F – +140 °F) |
| Temperature, ambient, max | 60 °C (140 °F) |
| Temperature, surrounding air, max | 60 °C (140 °F) |
| Brand | Allen Bradley |
|---|
