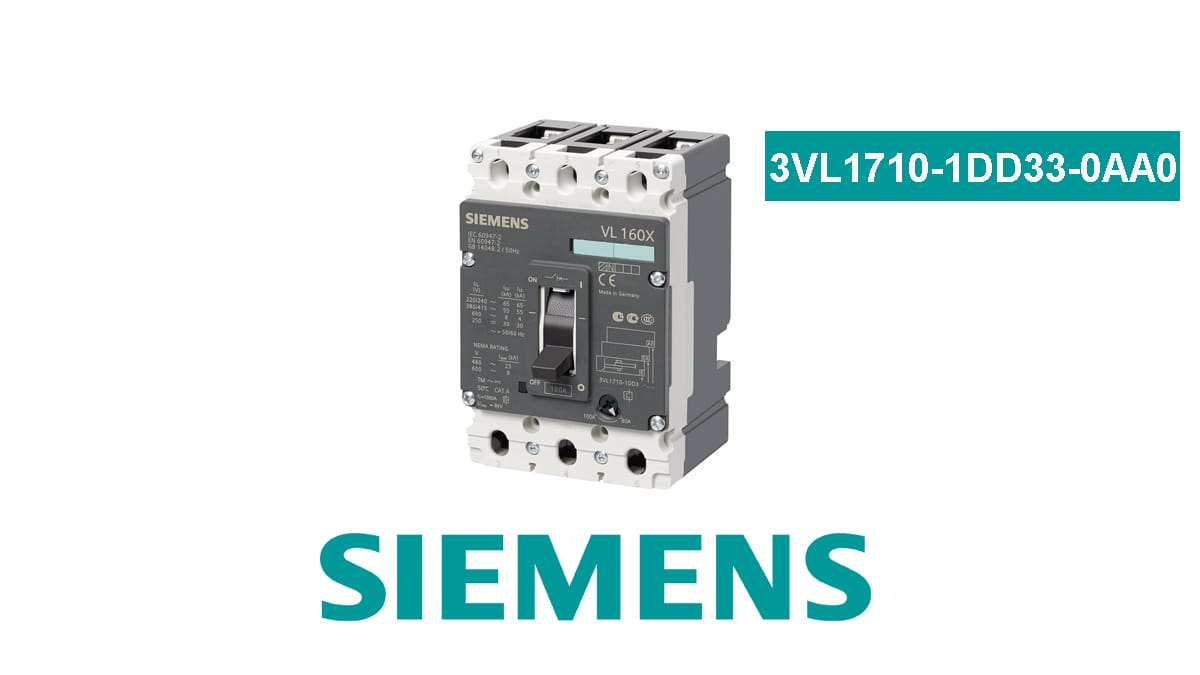

circuit breaker VL160X N standard breaking capacity Icu=55kA, 415V AC 3-pole, line protection Trip Unit TM, LI In=100A, rated current Ir=80…100A, overload prot. II=1000A, short-circuit prot. without auxiliary release without auxiliary/alarm switch, spare part product only for replacement purposes
circuit breaker VL160X N standard breaking capacity Icu=55kA, 415V AC 3-pole, line protection Trip Unit TM, LI In=100A, rated current Ir=80…100A, overload prot. II=1000A, short-circuit prot. without auxiliary release without auxiliary/alarm switch, spare part product only for replacement purposes
| ETIM Group: | Low-voltage industrial components |
| ETIM Class: | Power circuit-breaker for trafo/generator/installation protection |
| Adjustment range short-term delayed short-circuit release: | – – |
| Adjustment range undelayed short-circuit release: | 1000 – 1000A |
| Complete device with protection unit: | true |
| Degree of protection (IP): | IP20 |
| Device construction: | Built-in device fixed built-in technique |
| DIN rail (top hat rail) mounting optional: | false |
| Integrated earth fault protection: | false |
| Motor drive integrated: | false |
| Motor drive optional: | true |
| Number of auxiliary contacts as change-over contact: | 0 |
| Number of auxiliary contacts as normally closed contact: | 0 |
| Number of auxiliary contacts as normally open contact: | 0 |
| Number of poles: | 3 |
| Overload release current setting: | 80 – 100A |
| Position of connection for main current circuit: | Front side |
| Rated permanent current Iu: | – |
| Rated short-circuit breaking capacity lcu at 400 V, 50 Hz: | 55kA |
| Rated voltage: | – – |
| Suitable for DIN rail (top hat rail) mounting: | false |
| Type of electrical connection of main circuit: | Frame clamp |
| With integrated under voltage release: | false |
| With switched-off indicator: | false |
| Brand | Siemens |
|---|
