Description

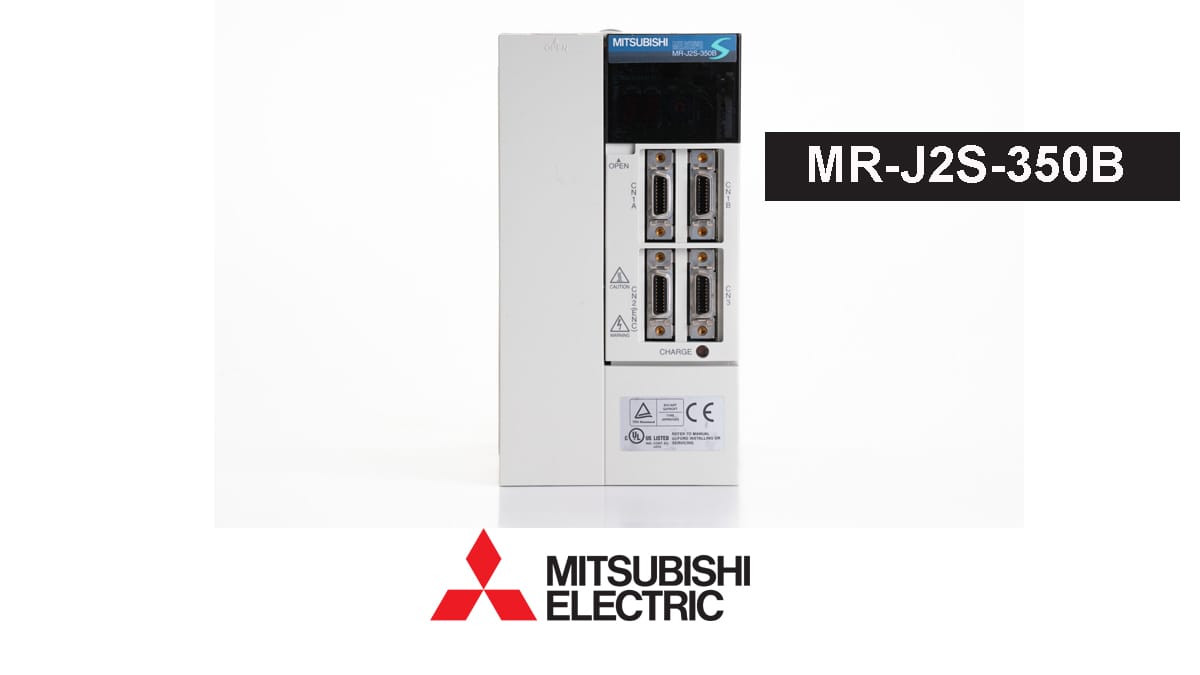

The Mitsubishi MR-J2S-350B AC Servo Amplifier provides accurate control and efficient performance. It runs steady on 200 to 230 VAC at a 50/60 Hz 3-phase voltage and frequency input. It performs reliably despite voltage and frequency changes from 170 to 253 VAC and 5%, respectively. A current control system and sine-wave PWM control provide precise motor control. The built-in dynamic brake improves dynamic safety and responsiveness. The Mitsubishi MR-J2S-350B AC Servo Amplifier provides reliable AC servo motor control for industrial applications.
Specification
Technical specifications for MR-J2S-350B
| Manufacturer | Mitsubishi |
|---|
| Product ID | mr-j2s-350b |
|---|
| Product Type | AC Servo Amplifier |
|---|
| Voltage/frequency | 3-phase 200 to 230VAC, 50/60Hz |
|---|
| Permissible voltage fluctuation | 3-phase 170 to 253VAC |
|---|
| Permissible frequency fluctuation | Within 5% |
|---|
| Control system | Sine-wave PWM control, current control system |
|---|
| Dynamic brake | Built-in |
|---|
| Structure | Force-cooling, open (IP00) |
|---|
| Ambient temperature (Operation) | °C : 0 to 55 (non-freezing) °F : 32 to 131 (non-freezing) |
|---|
| Ambient temperature (Storage) | °C : -20 to 65 (non-freezing) °F : -4 to 149 (non-freezing) |
|---|
| Ambient humidity (Operation) | 90%RH or less (non-condensing) |
|---|
| Ambient humidity (Storage) | 90%RH or less (non-condensing) |
|---|
| Altitude Max | 1000m (3280ft) above sea level |
|---|
