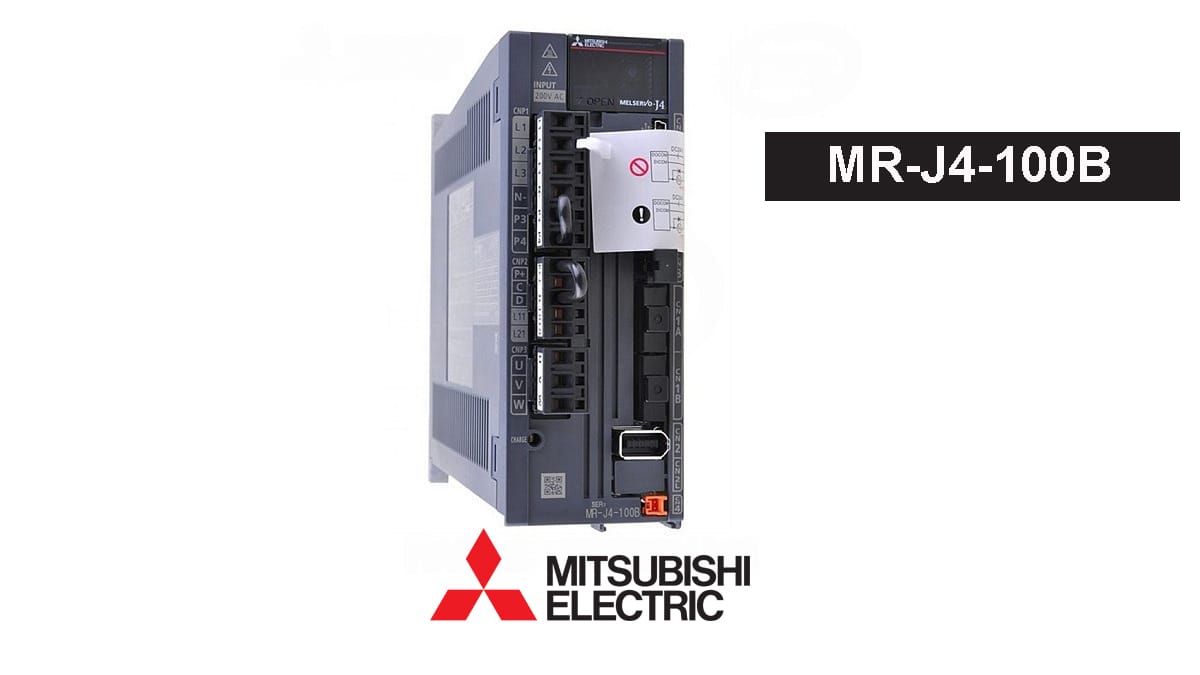

Mitsubishi MR-J4-100B

Sold by: admin

Brand: Mitsubishi Electric

Rp9.000.000,00

Cek Price Range dibawah atau hubungi Customer Service kami. Terimakasih

Mitsubishi MR-J4-100B is a 1.0 kW AC servo amplifier from the Mitsubishi MELSERVO-J4 Series supporting 200-240 V AC input (single-phase or three-phase), advanced PWM sinusoidal & current control, SSCNET III/H interface, and built-in Safe Torque Off (STO) safety — perfect for high-precision motion control in CNC machines, robotics, and automated systems

Add to cart

Buy Now

Brand: Mitsubishi Electric

Mitsubishi MR-J4-100B MELSERVO-J4 AC Servo Amplifier 1.0 kW

Name: CV. Armada Perkasa Nusantara
Address: ID

Mitsubishi MR-J4-100B adalah servo amplifier / AC servo drive kelas industri dari seri MELSERVO-J4 yang dirancang untuk memberikan kontrol presisi tinggi pada gerak motor servo AC. Drive ini mendukung daya keluaran 1.0 kW (1000 W) dan bekerja pada tegangan AC 200-240 V (kelas 200 V) baik dari sumber single-phase atau three-phase, cocok untuk berbagai aplikasi otomasi seperti CNC, robotik, conveyor, dan sistem kontrol gerak kompleks.

MR-J4-100B dilengkapi dengan fungsi keamanan Safe Torque Off (STO) sesuai standar IEC/EN functional safety, serta kontrol yang halus melalui teknologi PWM sinusoidal dan current control. Drive servo ini mendukung interaksi perintah melalui SSCNET III/H interface atau sinyal input pulse train/analog, serta proteksi menyeluruh terhadap overcurrent, voltage, overload, dan kesalahan enkoder.

Servo amplifier AC dari Mitsubishi MELSERVO-J4 Series
Daya keluaran 1.0 kW (1000 W) untuk motor servo
Tegangan input AC 200-240 V, single-phase atau three-phase, 50/60 Hz
Rated current ≈ 6 A, output voltage 170 V AC
Kontrol halus dengan PWM sinusoidal & current control
Interface SSCNET III/H (komunikasi cepat)
Fungsi Safe Torque Off (STO) untuk keamanan operator
Proteksi lengkap: overcurrent, overvoltage, overload, encoder fault
Kompak, IP20, ideal untuk panel industri

Reviews

There are no reviews yet.

Be the first to review “Mitsubishi MR-J4-100B”

Specification

Mitsubishi MR-J4-100B – Technical Specifications
Brand	Mitsubishi Electric
Model / Part Number	MR-J4-100B (MELSERVO-J4 Series)
Product Type	AC Servo Amplifier / Servo Drive
Rated Output Power	1.0 kW (1000 W) :contentReference[oaicite:9]{index=9}
Input Voltage	AC 200-240 V, 50/60 Hz (single or three-phase)
Rated Current	~6 A (output)
Control Circuit Input Voltage	AC 200-240 V/0.2 A
Command Interface	SSCNET III/H high-speed control / Pulse train or analog input
Safety Function	Safe Torque Off (STO) compliant IEC/EN standards
Control Method	PWM sinusoidal & current control
Protection Functions	Overcurrent, overvoltage, overload, encoder error, undervoltage
Mounting	Panel / control cabinet, IP20
Operating Temp.	0 °C … 55 °C
Dimensions (Approx.)	60 × 168 × 185 mm
Weight	~1.4 kg
