MCDKT3520 Servo Driver MINAS A5 Family Servo Driver 10 W to 7.5 kW, Input power supply for Driver: Voltage DC 24 V/48 V・AC 100 V/200 V/400 V, 20 bit incremental・17 bit Absolute/Incremental encoder, Frequency response 2.3 kHz

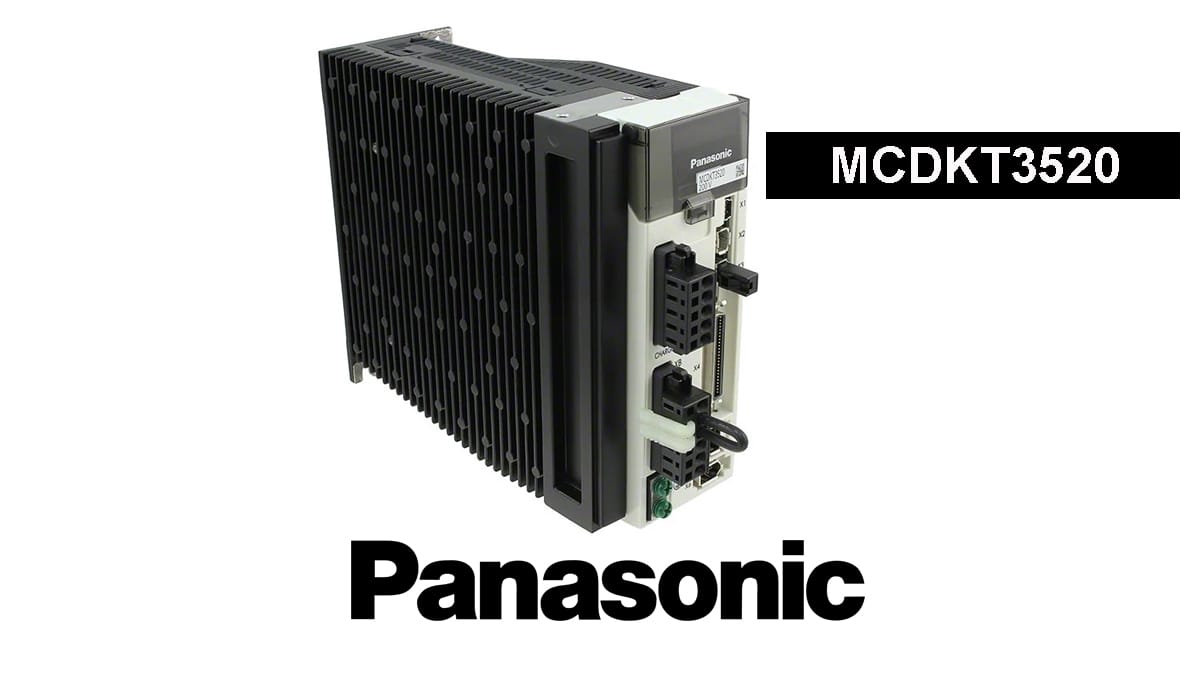

Panasonic MINAS A5 – MCDKT3520
- account_circle admin
- calendar_month 16/02/2025
- visibility 36
- comment 0 komentar
- label
MCDKT3520 Servo Driver MINAS A5 Family Servo Driver 10 W to 7.5 kW, Input power supply for Driver: Voltage DC 24 V/48 V・AC 100 V/200 V/400 V, 20 bit incremental・17 bit Absolute/Incremental encoder, Frequency response 2.3 kHz
Specification
| Item | Specifications |
|---|---|
| Part Number | MCDKT3520 |
| Product details | A5Ⅱ series Speed, Position, Torque, Full-closed type with the safety function |
| Family Name | MINAS A5 |
| Series | A5Ⅱ series |
| Type | Speed, Position, Torque, Full-closed type |
| Frame | C-Frame |
| Frequency response (kHz) | 2.3 |
| Control method | Position control, Velocity control, Torque control, and Full-closed control |
| Safety Function | with |
| Power device Max. current rating | 30A |
| Current detector current rating | 20A |
| Supply voltage | Single/3-phase 200 V |
| I/F Classification of type | Analog/Pulse |
| Dimensions (W) (Unit: mm) | 65 |
| Dimensions (H) (Unit: mm) | 150 |
| Dimensions (D) (Unit: mm) | 170 |
| Mass (kg) | 1.6 |
| Environment | For more details, please refer to the instruction manual. |
