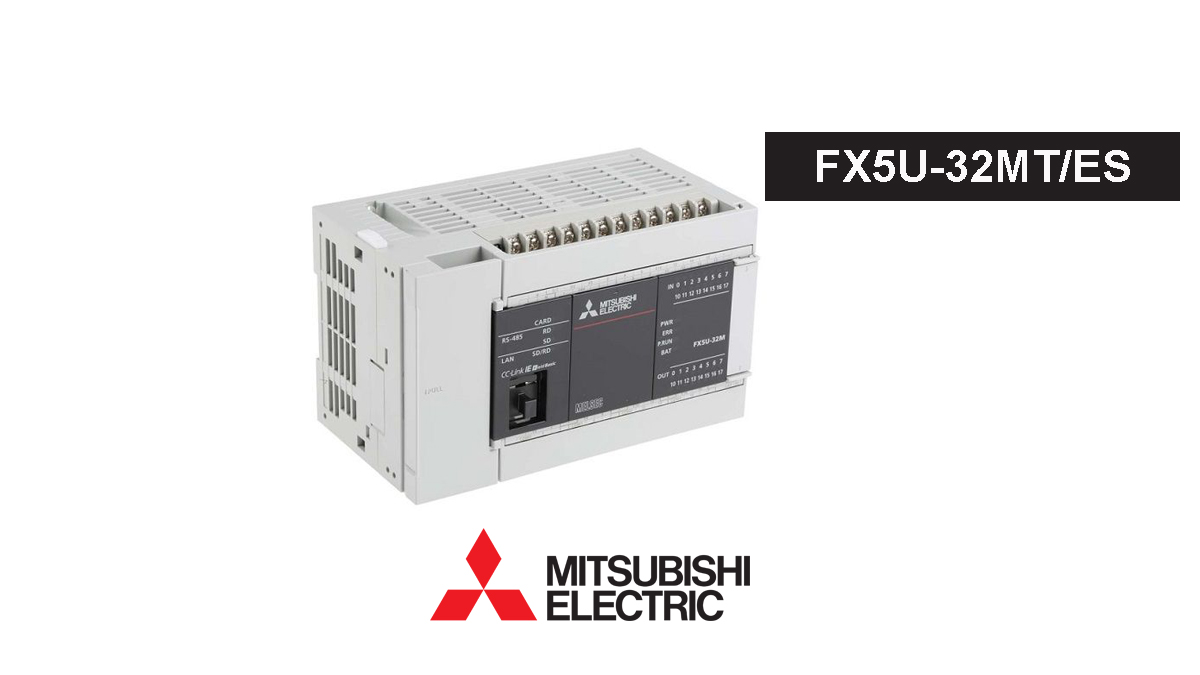

Mitsubishi FX5U-32MT/ES PLC CPU Module MELSEC iQ-F 16 Input 16 Transistor Output

Mitsubishi FX5U-32MT/ES adalah CPU Module dari keluarga MELSEC iQ-F Series yang dirancang untuk kebutuhan otomasi industri, machine control, dan sistem PLC berkecepatan tinggi. Model ini memiliki total 32 built-in I/O points, terdiri dari 16 digital input 24 VDC sink/source dan 16 transistor sink output. FX5U-32MT/ES menggunakan catu daya 100–240 VAC dan dilengkapi terminal block yang dapat dilepas sehingga memudahkan instalasi serta maintenance pada panel kontrol.

Keunggulan utama FX5U-32MT/ES adalah kemampuan pemrosesan cepat dengan waktu eksekusi instruksi LD sekitar 34 ns. PLC ini juga menyediakan fungsi high-speed counter hingga 6 channel pada 200 kHz dan 2 channel pada 10 kHz, serta fungsi positioning hingga 4 axis pada 200 kHz menggunakan transistor output. Selain itu, CPU telah memiliki 2-channel built-in analog input dan 1-channel analog output, sehingga dapat menangani kebutuhan kontrol analog tanpa harus selalu menggunakan modul analog tambahan.

Untuk kebutuhan komunikasi dan integrasi sistem otomasi, Mitsubishi FX5U-32MT/ES dilengkapi 1 port Ethernet dan 1 port RS-485. Ethernet mendukung koneksi MELSOFT, GOT, socket communication, FTP, HTTP Web Server, SNTP dan simple CPU communication, sedangkan fungsi serial mendukung N:N network, MC protocol, inverter communication dan komunikasi non-protocol. FX5U-32MT/ES juga mendukung MODBUS RTU/TCP serta CC-Link IE Field Network Basic. Dengan kombinasi I/O digital, analog, high-speed counter, positioning dan komunikasi terintegrasi, PLC ini sesuai untuk mesin packaging, conveyor, assembly machine, material handling, machine automation dan berbagai aplikasi factory automation. Mitsubishi Electric mencantumkan model ini sebagai On Sale.

Reviews

There are no reviews yet.

Be the first to review “Mitsubishi FX5U-32MT/ES”

Specification

Specification	Mitsubishi FX5U-32MT/ES
Brand	Mitsubishi Electric
Model	FX5U-32MT/ES
Series	MELSEC iQ-F
Product Type	PLC CPU Module
Power Supply Type	AC Power Supply / DC Input
Rated Power Supply	100–240 VAC
Power Supply Voltage Range	-15%, +10%
Power Supply Frequency	50/60 Hz
Power Consumption	30 W
24 VDC Service Power Supply	Up to 900 mA
Total Built-in I/O	32 points
Digital Inputs	16 points
Input Type	24 VDC sink/source
Input Connection	Removable terminal block, M3 screws
Input Signal Voltage	24 VDC +20%, -15%
Input Signal Current	5.3 mA at 24 VDC
Input Impedance	4.3 kΩ
ON Input Sensitivity Current	3.5 mA or more
OFF Input Sensitivity Current	1.5 mA or less
High-Speed Input Frequency X0–X5	200 kHz
Input Frequency X6–X17	10 kHz
Input Insulation	Photo-coupler insulation
Digital Outputs	16 points
Output Type	Transistor / Sink Output
Output Voltage	5–30 VDC
Maximum Load Current	0.5 A/point
Maximum Load Current per Common	0.8 A or less for 4 output points/common
Output Leakage Current	0.1 mA or less at 30 VDC
ON Voltage Drop	1.0 V or less for Y0–Y3; 1.5 V or less for subsequent outputs
Output Response Time	2.5 μs or less at 10 mA or more; 0.2 ms or less at 200 mA or more / 24 VDC
Output Insulation	Photo-coupler insulation
Analog Inputs	2 channels, built-in
Analog Input Type	Voltage input
Analog Output	1 channel, built-in
High-Speed Counter	Up to 6 channels at 200 kHz + 2 channels at 10 kHz
Positioning Function	Up to 4 axes at 200 kHz
PLC Processing Speed	34 ns LD instruction
Program Capacity	64K steps / 128K steps depending on CPU firmware version
Device/Label Memory	120 kbytes
Data Memory	5 Mbytes
SD Memory Card	SD/SDHC, maximum 16 GB
Ethernet Port	1 channel, built-in
RS-485 Port	1 channel, built-in
Ethernet Functions	MELSOFT/GOT connection, socket communication, FTP, HTTP Web Server, SNTP, simple CPU communication
Serial Communication	N:N Network, parallel link, MC protocol, inverter communication, non-protocol communication
MODBUS	MODBUS RTU/TCP, master and slave functions
CC-Link IE Field Network Basic	Supported
Programming Languages	LD, ST, FBD/LD, SFC
Programming Extensions	Function Block, Function, Local/Global Label Programming
Constant Scan	0.2–2000 ms
Clock Function	Year, month, day, hour, minute, second, day of week
Clock Accuracy	±45 seconds/month at 25°C typical
Operating Temperature	-20 to +55°C, non-freezing
Storage Temperature	-25 to +75°C, non-freezing
Operating Humidity	5–95% RH, non-condensing
Storage Humidity	5–95% RH, non-condensing
Installation Location	Inside a control panel
Operating Altitude	0–2000 m
Grounding	Class D grounding, 100 Ω or less
Overvoltage Category	II or less
Pollution Degree	2 or less
Shock Resistance	147 m/s², 11 ms, half-sine pulse
Insulation Resistance	10 MΩ or higher at 500 VDC
Dielectric Withstand Voltage	1.5 kV AC / 1 min power-to-ground; 500 V AC / 1 min for 24 VDC and transistor output circuits
Conformance Standards	UL, cUL, CE (EMC), CE (LVD), CE (RoHS), KC (EMC), LR, NK, DNV, ABS, RINA, BV, KR
Product Status	On Sale
