Description
MINI Analog Pro Signal Conditioners
The Mini Analog Pro signal conditioners from Phoenix Contact are the first 6mm range with plug-in connection technology. Using the latest switching technology, applications are made quicker and easier with the signal conditioners’ highly compact and visible housing, easily accessible terminal points and current measurement. Users also benefit from simple configuration via DIP switches as well as extended configuration via software or smartphone app without needing additional accessories plus supports NFC communication
Easy startup and servicing: measures signals without disconnecting current loops and optional disconnect function
Excellent signal quality
Available with extended supply voltages and operating temperatures to suit a wide range of applications
Wiring with screw connection or tool-free plug-in technology

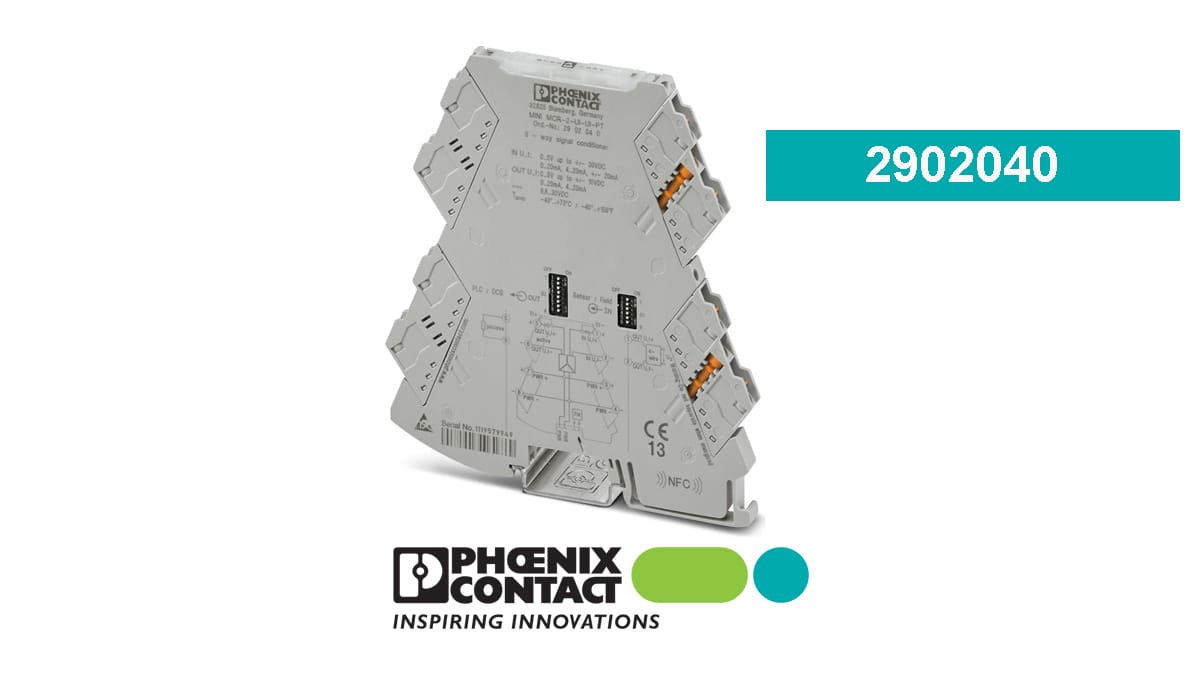

Phoenix Contact Signal Conditioner – MINI MCR-2-UI-UI-PT – 2902040
This mini signal conditioner from Phoenix Contact acts as an isolator to ensure interference-free transmission of analogue signals. Use it to safely integrate field signals into your industrial network.
The device works with current or digital output in a network without needing a signal-specific input card. Its compact housing has easily accessible terminal points for hassle-free wiring. A light-emitting diode (LED) clearly warns you if an error occurs. The component has plug-in connectors and it’s straightforward to install, even in confined spaces. Quickly attach conductors via a push-in system that requires little force and holds wires firmly.
You can manually configure this signal conditioner using dual in-line packaging (DIP) switches or download the smartphone app. It meets Atmosphere Explosible (ATEX) standards and is suitable to use in the presence of explosive gases.
• Input range of 0 mA to 24 mA and 0 V to 33 V
• Current and voltage input signal type
• Current and voltage output signal type
• Operating temperature range of -40°C to +70°C
• DIN rail mounting type
• Output range of 0 V to 10 V and 0 mA to 22 mA
• Supply voltage of 9.6 V DC to 30 V DC
• Dimensions of 6.2 (width) 110.5 (height) 120.5 mm (depth)
